Elbow 90° M Threaded BSPT

Useful Information

Key Features / Tech Specs:

  • Material: nickel plated brass
  • Male BSPT thread
  • Sizes available from 1/8" x 1/4" to 1/4" x 3/8"

Technical Info:

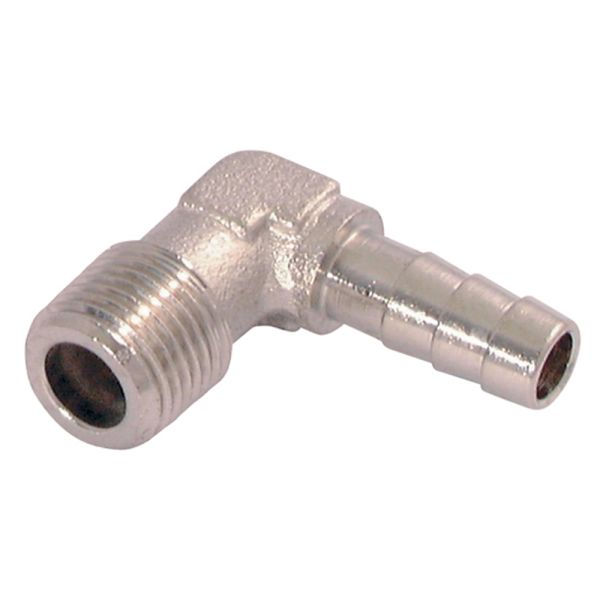

90° Elbow - Nickel Plated Brass Hose Tail



Product Code A (mm) A1(inch) B (mm) C (mm) D (mm) CH (mm)
375663 6 1/8 7.5 17 14 11
375664 6 1/4 11 22 14 11
375665 9 1/4 11 22 14 11



These nickel plated brass elbow hose tails are used to join together a length of hose and a female threaded pipe or fitting, at a 90° angle.

Like the braided PVC hoses we also supply, these hose tails are designed for use in compressed air and water, oil and fluid transportation applications.

The maximum pressure and temperature ratings are entirely dependent on the hose being used itself. Please refer to the PVC braided hose section for more information.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
375663Nickel Plated Brass Hose Tail Elbow M BSPT x Barb 1/8" x 1/4" £3.96 50% £1.98
375664Nickel Plated Brass Hose Tail Elbow M BSPT x Barb 1/4" x 1/4" £3.76 50% £1.88
375665Nickel Plated Brass Hose Tail Elbow M BSPT x Barb 1/4" x 3/8" £4.48 50% £2.24
