Elbow 90° F Threaded BSPP
Useful Information
Technical Specification
- Material: Brass
- Thread Type: BSPP (British Standard Pipe Parallel)
- Thread Gender: Female
- Configuration: 90° elbow with hose tail
- Sizes Available: 1/4" x 8mm to 3/8" x 13mm
- Compatible Media: Compressed air, water, oil, and general fluids
Description

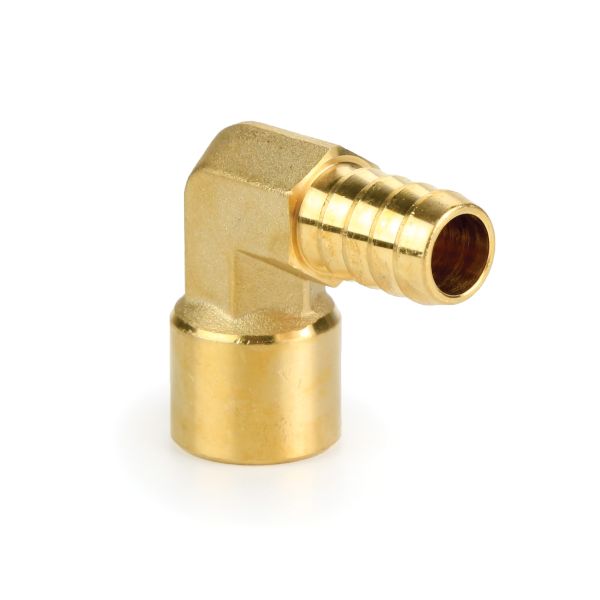

This high-quality brass elbow fitting enables secure connection of a hose to a male BSPP-threaded pipe or component at a 90° angle. The compact right-angle design allows for efficient routing in confined spaces, while the parallel female thread ensures compatibility with a wide range of fittings. Designed for general-purpose fluid transfer applications, it is particularly suited for air, water, and oil systems. The brass construction ensures reliable performance and long service life, even in demanding environments.
Key Features & Benefits
- 90° elbow design provides compact, space-saving hose routing
- Female BSPP thread ensures a reliable, parallel connection to male threads
- Barbed hose tail delivers a secure grip when used with hose clamps
- Constructed from corrosion-resistant brass for durability
- Ideal for use with air, water, oil, and non-corrosive fluids
- Manufactured to ISO 228 Class A for precise thread compatibility
- Suitable for industrial, commercial, and maintenance applications

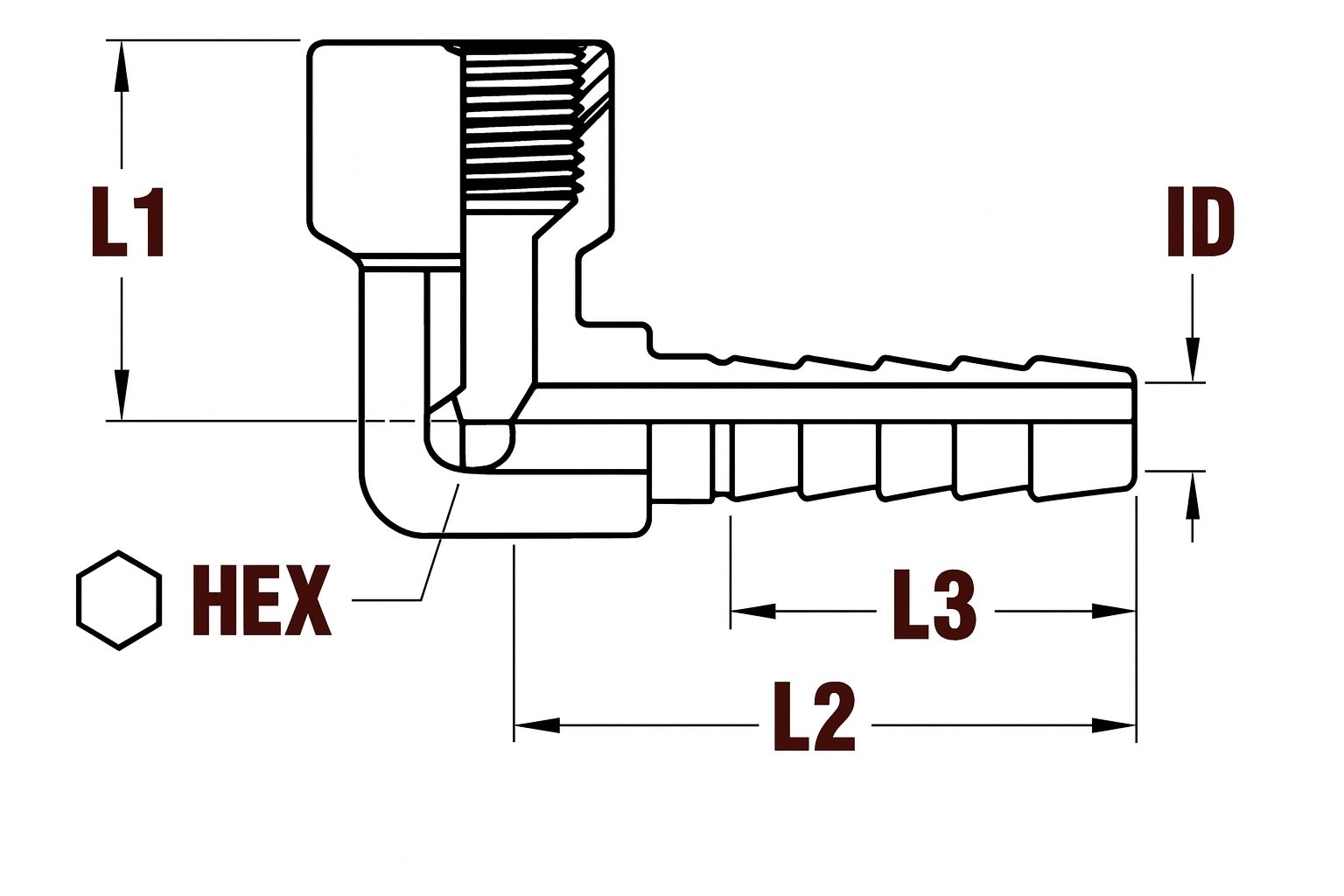

| Product Code | Thread (inch) | Hose ID (mm) | Hose ID (inch) | L1 (mm) | L2 (mm) | L3 (mm) | HEX (mm) | ID (mm) |
| 375547 | 1/4 | 8 | 5/16 | 26 | 30.5 | 20 | 11 | 5.5 |
| 375548 | 1/4 | 10 | 3/8 | 26 | 30.5 | 20 | 11 | 7 |
| 375549 | 3/8 | 10 | 3/8 | 31.5 | 33.5 | 20 | 15 | 7 |
| 375550 | 3/8 | 13 | 1/2 | 31.5 | 33.5 | 20 | 15 | 9.5 |
