PVC
Useful Information
Technical Specification
- Material: PVCu
- Thread Type: BSP Male (ISO 228-1)
- Connection Type: BSP Male x Hose Tail
- Sizes Available: 3/8" x 16mm to 2" x 63mm
- Maximum Working Pressure: 12 bar (PN16 rated)
Description

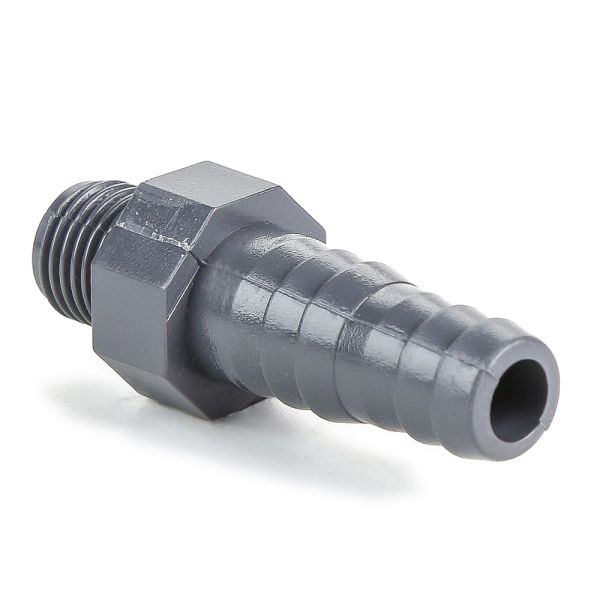

This robust PVCu hose tail is designed for secure and reliable hose-to-pipe connections, compatible with Class 7 threaded PVC systems. Its reducing barb accommodates a range of hose sizes, offering versatility in fluid handling applications. Engineered to perform under pressure, this fitting is ideal for non-corrosive fluid systems in industrial, water treatment, and irrigation sectors.
Key Features & Benefits
- Manufactured from durable, corrosion-resistant PVCu
- Rated to 12 bar for pressure applications (PN16)
- Parallel BSP male thread ensures a secure, leak-tight fit
- Dual-diameter barb accommodates two hose sizes (excluding 12mm size)
- Suitable for use with Class 7 PVC threaded pipe systems
- Lightweight, easy to handle and install
- Fully compliant with EN ISO 1452, EN ISO 15493, and ISO 228-1 standards
- Available in a wide range of sizes from 3/8" x 16mm to 2" x 63mm
| Product Code | Nominal Size | A | B | C | D |
| 356963 | 3/8" x 16mm | 12 | 64 | 16 - 18 | 19 |
| 356964 | 1/2" x 20mm | 15 | 70 | 20 - 22 | 24 |
| 356965 | 3/4" x 25mm | 17 | 76 | 25 - 27 | 30 |
| 356966 | 1" x 32mm | 20 | 80 | 32 - 34 | 36 |
| 356967 | 1 1/4" x 40mm | 22 | 92 | 40 - 42 | 46 |
| 356968 | 1 1/2" x 50mm | 23 | 99 | 50 - 52 | 55 |
| 356969 | 2" x 63mm | 26 | 118 | 60 - 63 | 65 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
