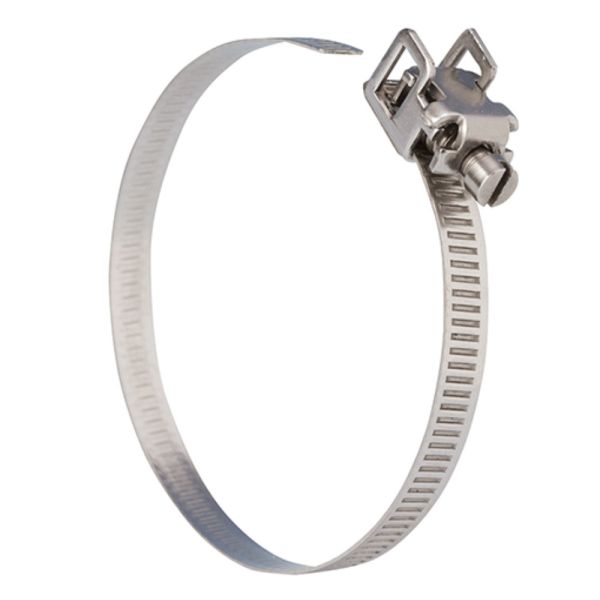

Jubilee Band Straps 7mm Stainless Steel
Technical Specification
- Manufacturer: Jubilee
- Material: 304 stainless steel
- Band Width: 7mm
- Band Thickness: 0.56mm
- Fastening: 7mm A/F (flip lock housing and screw)
- Torque (Recommended/Max): 3.0 Nm / 4.0 Nm
- Corrosion Resistance: 1000 hours (NSS test)
- Adjustment Range: 35mm - 405mm depending on selected size
- Installation Tools Required: None - quick-release design for manual fitting
Description
Ideal for installations where space or weight are limited, these slimline stainless steel quick release straps are designed for rapid deployment and secure fastening. The compact 7mm band and flip lock mechanism allow full opening of the clamp, enabling efficient positioning around pipes, ducts, or other components - especially in tight or enclosed settings.
These clips are widely used in HVAC systems, signage installation, cable retention, and temporary or adjustable fixings. Offering superior corrosion resistance with 304 stainless steel construction and a 1000-hour NSS test rating, they are suitable for demanding environments where durability is essential. The reusable design not only ensures cost efficiency but also aligns with fire safety requirements where plastic cable ties are unsuitable.
Key Features & Benefits
- Slimline 7mm band width – perfect where space is at a premium
- 304 stainless steel for enhanced durability and corrosion resistance
- Flip lock housing enables full clamp opening for easy fitting
- No tools required – simple 7mm A/F hex or slotted screw head
- Ideal for sign fixing, cable management, HVAC and general repairs
- Reusable and adjustable – supports large diameter and irregular shapes
- Manufactured in the UK by Jubilee – trusted for quality and performance
- 1000-hour NSS corrosion resistance for long-term reliability
| Prodct Code | Adjustment (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) |
| 383190 | 35-50 | 7 | 0.56 | 3.0 | 4.0 |
| 383191 | 45-75 | 7 | 0.56 | 3.0 | 4.0 |
| 383192 | 50-100 | 7 | 0.56 | 3.0 | 4.0 |
| 383193 | 50-120 | 7 | 0.56 | 3.0 | 4.0 |
| 383194 | 50-150 | 7 | 0.56 | 3.0 | 4.0 |
| 383195 | 50-175 | 7 | 0.56 | 3.0 | 4.0 |
| 383196 | 50-200 | 7 | 0.56 | 3.0 | 4.0 |
| 383197 | 50-225 | 7 | 0.56 | 3.0 | 4.0 |
| 383198 | 50-250 | 7 | 0.56 | 3.0 | 4.0 |
| 383199 | 50-275 | 7 | 0.56 | 3.0 | 4.0 |
| 383200 | 50-300 | 7 | 0.56 | 3.0 | 4.0 |
| 383201 | 50-330 | 7 | 0.56 | 3.0 | 4.0 |
| 383202 | 50-355 | 7 | 0.56 | 3.0 | 4.0 |
| 383203 | 50-380 | 7 | 0.56 | 3.0 | 4.0 |
| 383204 | 50-405 | 7 | 0.56 | 3.0 | 4.0 |
