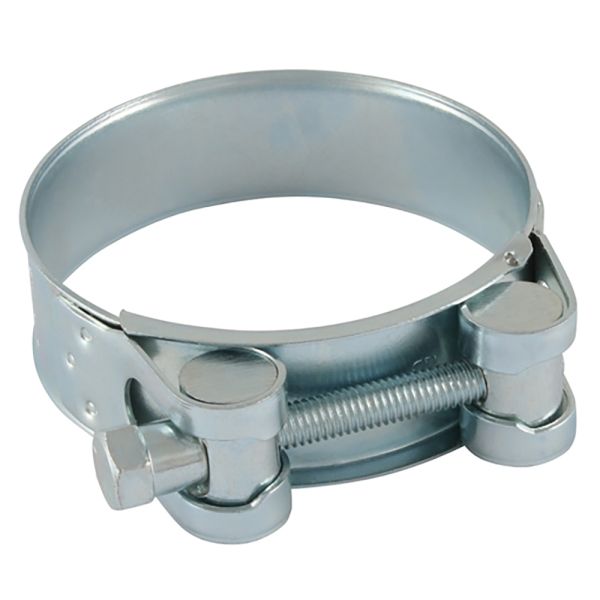

Jubilee Superclamps Mild Steel
Useful Information
Technical Specification
- Manufacturer: Jubilee
- Material: Zinc plated mild steel
- Band Thickness: Up to 1.8mm
- Torque Range: 4.5 - 18.5 Nm recommended | Up to 25 Nm maximum
- Diameter Range: 17mm - 239mm
- Corrosion Resistance: 168-hour neutral salt spray test
- Standards: DIN 3017 | SAE J1508 compliant
Description
Engineered for high-strength clamping, these heavy-duty worm drive Superclamps offer exceptional performance in demanding applications such as suction and delivery hoses. Featuring a solid trunnion for maximised torque and a smooth band to protect the hose, they ensure a secure, uniform 360° seal. Zinc-plated for corrosion resistance and manufactured to international standards, they are ideal for agricultural, automotive, industrial, and construction sectors.
Key Features & Benefits
- Durable zinc-plated mild steel construction for extended service life
- Wide clamping range from 17mm to 239mm for flexible application
- Robust design ideal for heavy-duty hose clamping
- Single bolt adjustment for easy, fast installation
- Solid trunnion maximises clamping force under high load
- Smooth inner band prevents hose damage
- Bridge piece ensures consistent 360° sealing
- Suitable for use with suction and delivery hoses in harsh environments
- Complies with DIN 3017 and SAE J1508 standards
- Chromium VI free finish for environmental safety
| Product Code | Adjustment (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Screw Head (mm) |
| 383008 | 17 - 19 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383009 | 20 - 22 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383010 | 23 - 25 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383011 | 26 - 28 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383012 | 29 - 31 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383013 | 32 - 35 | 20 | 1 | 6 | 8 | 10 |
| 383014 | 36 - 39 | 20 | 1 | 6 | 8 | 10 |
| 383015 | 40 - 43 | 20 | 1 | 6 | 8 | 10 |
| 383016 | 44 - 47 | 20 | 1 | 6 | 8 | 10 |
| 383017 | 48 - 51 | 20 | 1 | 6 | 8 | 10 |
| 383018 | 52 - 55 | 20 | 1 | 6 | 8 | 10 |
| 383019 | 56 - 59 | 20 | 1 | 6 | 8 | 10 |
| 383020 | 60 - 63 | 20 | 1 | 6 | 8 | 10 |
| 383021 | 64 - 67 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383022 | 68 - 73 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383023 | 74 - 79 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383024 | 80 - 85 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383025 | 86 - 91 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383026 | 92 - 97 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383027 | 98 - 103 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383028 | 104 - 112 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383029 | 113 - 121 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383030 | 122 - 130 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383031 | 131 - 139 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383032 | 140 - 148 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383033 | 149 - 161 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383034 | 162 - 174 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383035 | 175 - 187 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383036 | 188 - 200 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383037 | 201 - 213 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383038 | 214 - 226 | 25 | 1.8 | 18.5 | 25 | 13 |
| 383039 | 227 - 239 | 25 | 1.8 | 18.5 | 25 | 13 |
