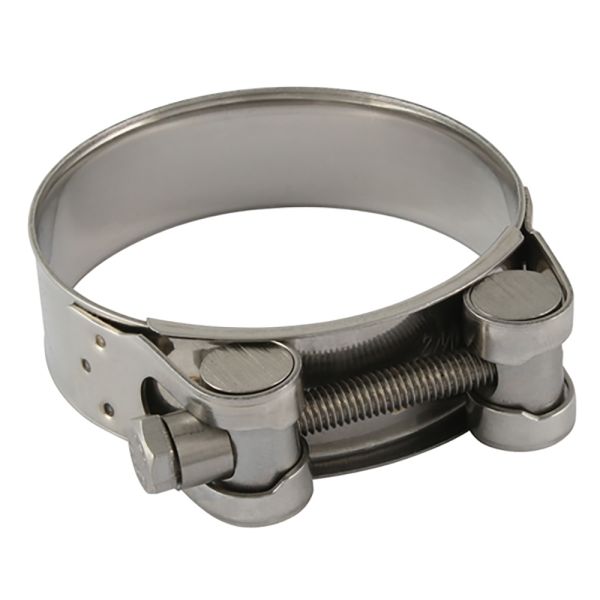

Jubilee Superclamps 304 Stainless Steel
Useful Information
Technical Specification
- Manufacturer: Jubilee
- Material: 304 stainless steel
- Band Thickness: Up to 1.5mm
- Torque Range: 4.5 – 18.5 Nm recommended | Up to 25 Nm maximum
- Diameter Range: 17mm – 239mm
- Corrosion Resistance: 1000-hour neutral salt spray test
- Standards: DIN 3017 | SAE J1508 compliant
Description
Engineered for extreme environments, these heavy-duty stainless steel Superclamps offer robust and secure clamping for suction and delivery hoses. Manufactured from high-grade 304 stainless steel, they provide superior corrosion resistance and long-term performance across marine, food-grade, oil & gas, and industrial applications. Featuring a solid trunnion, smooth internal band, and single nut adjustment, they deliver a powerful 360° seal without damaging the hose.
Key Features & Benefits
- High-quality 304 stainless steel for superior corrosion resistance
- Extended service life in marine, food processing, and chemical environments
- Wide clamping range from 17mm to 239mm to suit diverse hose types
- Ideal for suction and delivery hoses requiring a secure, vibration-resistant seal
- Single bolt design simplifies installation and adjustment
- Smooth internal band prevents hose abrasion and wear
- Bridge piece ensures uniform 360° sealing under pressure
- Solid trunnion increases clamping force and reliability
- Compliant with DIN 3017 and SAE J1508 industry standards
- Chromium VI free finish for environmental compliance
| Product Code | Adjustment (mm) | Band Width (mm) | Band Thickness (mm) | Recommended Torque (Nm) | Maximum Torque (Nm) | Screw Head (mm) |
| 383040 | 17 - 19 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383041 | 20 - 22 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383042 | 23 - 25 | 18 | 0.6 | 4.5 | 6 | 8 |
| 383045 | 32 - 35 | 20 | 1 | 6 | 8 | 10 |
| 383047 | 40 - 43 | 20 | 1 | 6 | 8 | 10 |
| 383048 | 44 - 47 | 20 | 1 | 6 | 8 | 10 |
| 383049 | 48 - 51 | 20 | 1 | 6 | 8 | 10 |
| 383050 | 52 - 55 | 20 | 1 | 6 | 8 | 10 |
| 383051 | 56 - 59 | 20 | 1 | 6 | 8 | 10 |
| 383052 | 60 - 63 | 20 | 1 | 6 | 8 | 10 |
| 383055 | 74 - 79 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383057 | 86 - 91 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383058 | 92 - 97 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383059 | 98 - 103 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383060 | 104 - 112 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383061 | 113 - 121 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383062 | 122 - 130 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383063 | 131 - 139 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383064 | 140 - 148 | 25 | 1.2 | 18.5 | 25 | 13 |
| 383065 | 149 - 161 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383066 | 162 - 174 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383067 | 175 - 187 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383068 | 188 - 200 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383069 | 201 - 213 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383070 | 214 - 226 | 25 | 1.5 | 18.5 | 25 | 13 |
| 383071 | 227 - 239 | 25 | 1.5 | 18.5 | 25 | 13 |
