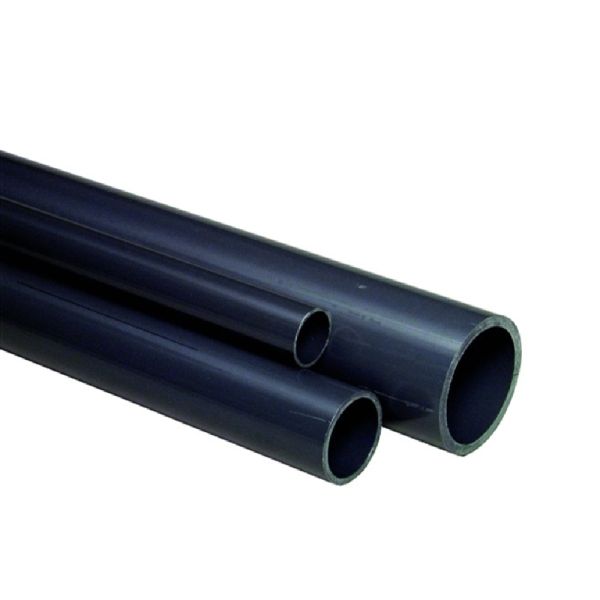

Georg Fischer PVCu Metric Pipe PN16
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 16 bar at 20°C
- SDR: 9 & 13.6
- Sizes available: 6mm - 160mm
- Dimension: DIN 8061/62
| Product Code | d (mm) | di (mm) | e (mm) | Length (m) | SDR |
| 392267 | 6 | - | 1.0 | 5 | 9 |
| 392268 | 8 | - | 1.0 | 5 | 9 |
| 392269 | 10 | - | 1.2 | 5 | 9 |
| 392270 | 12 | - | 1.4 | 5 | 9 |
| 392271 | 16 | - | 1.8 | 5 | 13.6 |
| 392272 | 20 | 17.0 | 1.5 | 5 | 13.6 |
| 392273 | 25 | 21.2 | 1.9 | 5 | 13.6 |
| 392274 | 32 | 27.2 | 2.4 | 5 | 13.6 |
| 392275 | 40 | 34.0 | 3.0 | 5 | 13.6 |
| 392276 | 50 | 42.6 | 3.7 | 5 | 13.6 |
| 392277 | 63 | 53.6 | 4.7 | 5 | 13.6 |
| 392278 | 75 | 63.8 | 5.6 | 5 | 13.6 |
| 392279 | 90 | 76.6 | 6.7 | 5 | 13.6 |
| 392280 | 110 | 93.8 | 8.1 | 5 | 13.6 |
| 392281 | 125 | 106.6 | 9.2 | 5 | 13.6 |
| 392282 | 140 | 119.4 | 10.3 | 5 | 13.6 |
| 392283 | 160 | 136.4 | 11.8 | 5 | 13.6 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
