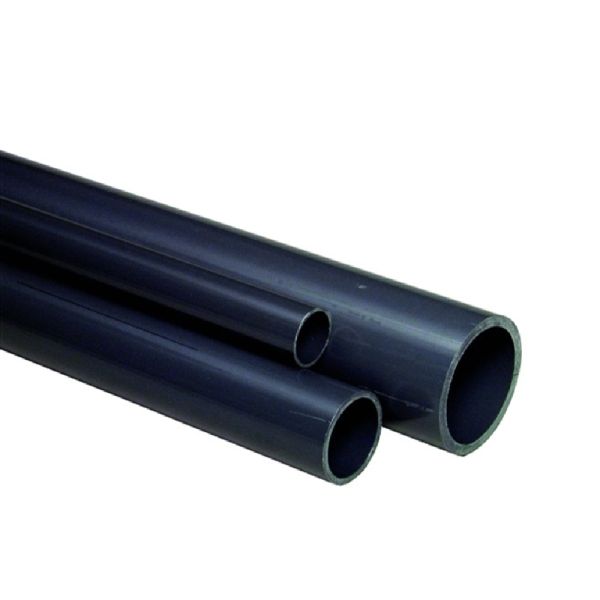

Georg Fischer PVCu Metric Pipe PN10
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 10 bar at 20°C
- SDR: 17 & 21
- Sizes available: 25mm - 315mm
- Dimension: DIN EN ISO 15493, DIN 8062
| Product Code | d (mm) | di (mm) | e (mm) | Length (m) | SDR |
| 392284 | 25 | 22.0 | 1.5 | 5 | 17 |
| 392285 | 32 | 28.4 | 1.9 | 5 | 17 |
| 392286 | 40 | 36.2 | 1.9 | 5 | 21 |
| 392287 | 50 | 45.2 | 2.4 | 5 | 21 |
| 392288 | 63 | 57.0 | 3.0 | 5 | 21 |
| 392289 | 75 | 67.8 | 3.6 | 5 | 21 |
| 392290 | 90 | 81.4 | 4.3 | 5 | 21 |
| 392291 | 110 | 99.4 | 5.3 | 5 | 21 |
| 392292 | 125 | 113.0 | 6.0 | 5 | 21 |
| 392293 | 140 | 126.6 | 6.7 | 5 | 21 |
| 392294 | 160 | 144.7 | 7.6 | 5 | 21 |
| 392295 | 180 | 162.8 | 8.6 | 5 | 21 |
| 392296 | 200 | 180.8 | 9.6 | 5 | 21 |
| 392297 | 225 | 203.4 | 10.8 | 5 | 21 |
| 392298 | 250 | 226.2 | 11.9 | 5 | 21 |
| 392299 | 280 | 253.2 | 13.4 | 5 | 21 |
| 392300 | 315 | 285.0 | 15.0 | 5 | 21 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
