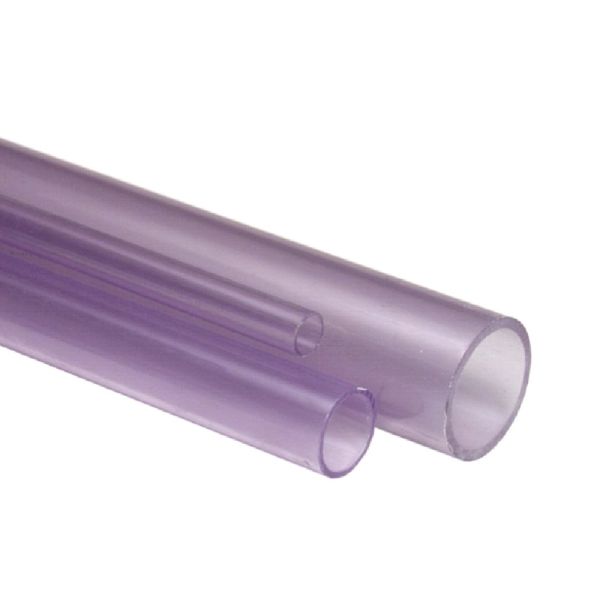

Georg Fischer PVC Metric Clear Pipe PN16
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: Clear polyvinyl chloride (PVC)
- Temperature rating: 0° - 60°C
- Pressure rating: 16 bar at 20°C
- SDR: 11 & 13.5
- Sizes available: 12mm - 63mm
- Dimension: DIN 8062
- Food grade approved (EU 10/2011, EU1539/2004)
| Product Code | d (mm) | di (mm) | e (mm) | Length (m) | SDR |
| 392301 | 12 | 10.0 | 1.1 | 5 | 1 |
| 392302 | 16 | 13.6 | 1.2 | 5 | 13.5 |
| 392303 | 20 | 17.0 | 1.5 | 5 | 13.5 |
| 392304 | 25 | 21.2 | 1.9 | 5 | 13.5 |
| 392305 | 32 | 27.2 | 2.4 | 5 | 13.5 |
| 392306 | 40 | 34.0 | 3.0 | 5 | 13.5 |
| 392307 | 50 | 42.6 | 3.7 | 5 | 13.5 |
| 392308 | 63 | 53.6 | 4.7 | 5 | 13.5 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
