Georg Fischer PVCu Metric Union Plain x SS M Thread EPDM

Georg Fischer PVCu Metric Union Plain x SS M Thread EPDM

Skip to the end of the images gallery

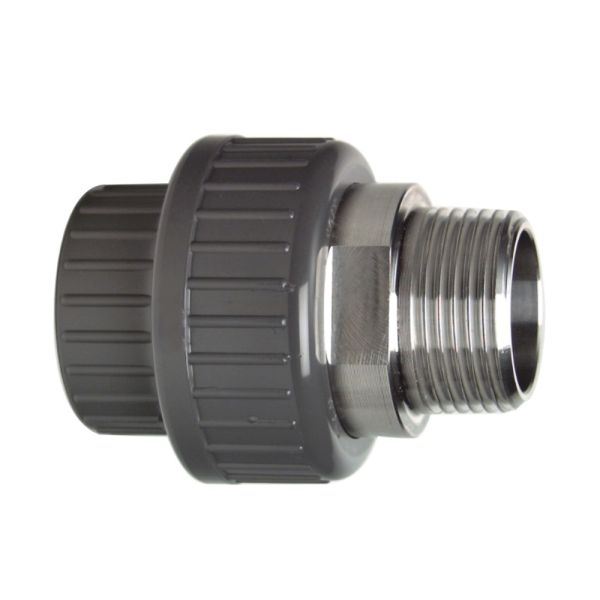

main product photo

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Manufacturer: Georg Fischer
Material: polyvinyl chloride - unplasticised (PVCu)
Temperature rating: 0° - 60°C
Pressure rating: 16 bar
Sizes available: 16mm x 3/8" - 63mm x 2"
Stainless steel male tapered thread
EPDM O-Ring

GF-union-plain-x-SS-thread-diagram

Product Code	d (mm)	R (inch)	z (mm)	D (mm)	L (mm)	L1 (mm)	L2 (mm)	s (mm)	G (inch)	Weight (kg)
393454	16	3/8	40	35	54	30	24	19	3/4	0.073
393455	20	1/2	44	43	60	34	26	24	1	0.126
393456	25	3/4	46	51	65	36	29	32	1 1/4	0.174
393457	32	1	50	58	72	40	33	37	1 1/2	0.262
393458	40	1 1/4	58	72	84	46	39	48	2	0.476
393459	50	1 1/2	62	83	93	48	46	54	2 1/4	0.535
393460	63	2	73	100	111	55	58	69	2 3/4	0.934

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Grouped product items
Code	Product Name	List Price	You Save	You Pay	Quantity
393454	GF PVCu Union Plain x SS M Thread EPDM 16mm x 3/8"	£96.29	37%	£60.66
393455	GF PVCu Union Plain x SS M Thread EPDM 20mm x 1/2"	£100.49	37%	£63.31
393456	GF PVCu Union Plain x SS M Thread EPDM 25mm x 3/4"	£112.80	37%	£71.06
393457	GF PVCu Union Plain x SS M Thread EPDM 32mm x 1"	£126.94	37%	£79.97
393458	GF PVCu Union Plain x SS M Thread EPDM 40mm x 1 1/4"	£174.28	37%	£109.80
393459	GF PVCu Union Plain x SS M Thread EPDM 50mm x 1 1/2"	£200.70	37%	£126.44
393460	GF PVCu Union Plain x SS M Thread EPDM 63mm x 2"	£308.80	37%	£194.54
