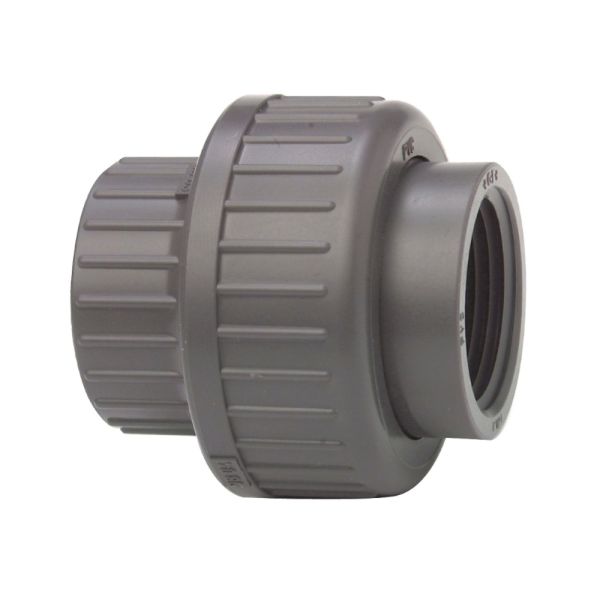

Georg Fischer PVCu Metric Union Plain x NPT Thread
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 16mm x 3/8" - 63mm x 2"
- NPT female tapered thread
- EPDM O-Ring
- Connection to plastic thread only
| Product Code | d (mm) | NPT (inch) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 393 | 16 | 3/8 | 4 | 10 | 35 | 17 | 24 | 3/4 | 0.026 |
| 393 | 20 | 1/2 | 2 | 10 | 43 | 19 | 26 | 1 | 0.042 |
| 393 | 25 | 3/4 | 4 | 10 | 51 | 22 | 29 | 1 1/4 | 0.068 |
| 393 | 32 | 1 | 4 | 10 | 58 | 25 | 33 | 1 1/2 | 0.093 |
| 393 | 40 | 1 1/4 | 6 | 12 | 72 | 29 | 39 | 2 | 0.150 |
| 393 | 50 | 1 1/2 | 11 | 14 | 83 | 34 | 46 | 2 1/4 | 0.228 |
| 393 | 63 | 2 | 17 | 18 | 100 | 41 | 58 | 2 3/4 | 0.387 |
