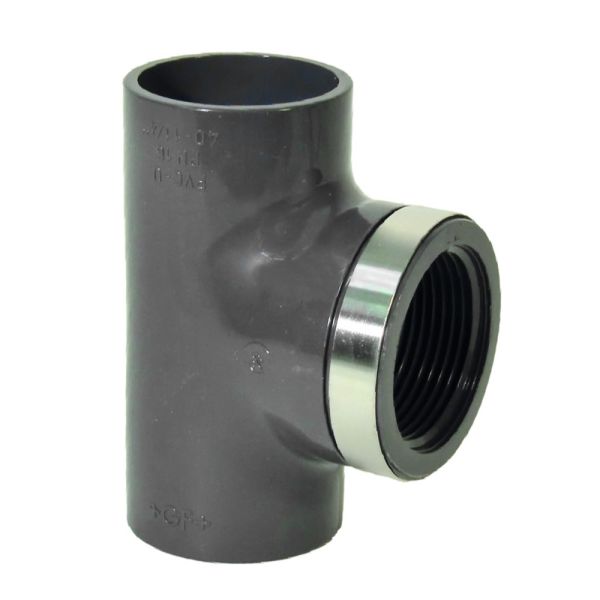

Georg Fischer PVCu Metric Tee 90° Plain x Thread
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 16 bar
- Sizes available: 12mm - 63mm
- Dimension: DIN 8061/62
- Parallel female thread
- Stainless steel reinforcing ring
- Connects metal or plastic thread
| Product Code | d (mm) | Rp (inch) | z1 (mm) | z2 (mm) | D (mm) | D1 (mm) | L (mm) | Weight (kg) |
| 393175 | 12 | 1/4 | 7 | 7 | 17 | 20 | 19 | 0.015 |
| 393176 | 16 | 3/8 | 9 | 9 | 21 | 25 | 23 | 0.027 |
| 393177 | 20 | 1/2 | 11 | 13 | 26 | 30 | 29 | 0.029 |
| 393178 | 25 | 3/4 | 14 | 15 | 32 | 35 | 33 | 0.043 |
| 393179 | 32 | 1 | 17 | 19 | 40 | 45 | 39 | 0.080 |
| 393180 | 40 | 1 1/4 | 23 | 26 | 47 | 55 | 49 | 0.134 |
| 393181 | 50 | 1 1/2 | 27 | 36 | 59 | 59 | 59 | 0.212 |
| 393182 | 63 | 2 | 33 | 46 | 74 | 75 | 71 | 0.379 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
