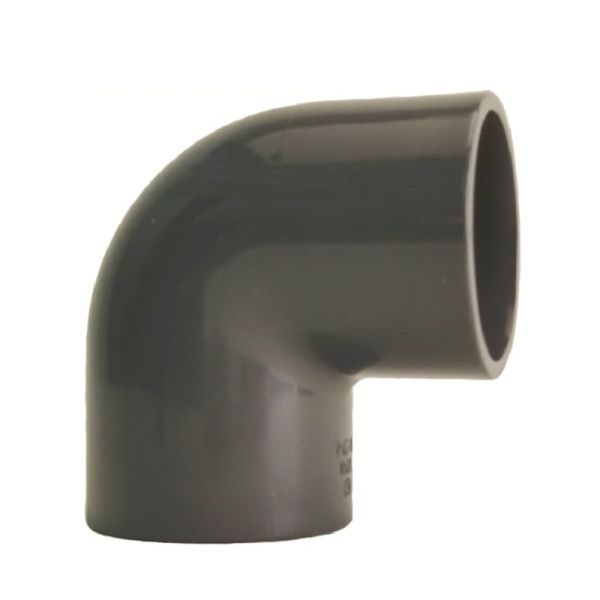

Georg Fischer PVCu Metric Elbow 90° Plain
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 6mm - 250mm
- Dimension: DIN 8061/62
| Product Code | d (mm) | z (mm) | D (mm) | L (mm) | Weight (kg) |
| 392863 | 6 | 4 | 11 | 16 | 0.004 |
| 392864 | 8 | 5 | 13 | 17 | 0.004 |
| 392865 | 10 | 6 | 14 | 18 | 0.004 |
| 392866 | 12 | 7 | 17 | 19 | 0.006 |
| 392867 | 16 | 9 | 21 | 23 | 0.007 |
| 392868 | 20 | 11 | 25 | 27 | 0.012 |
| 392869 | 25 | 14 | 32 | 33 | 0.024 |
| 392870 | 32 | 17 | 40 | 39 | 0.043 |
| 392871 | 40 | 23 | 47 | 49 | 0.062 |
| 392872 | 50 | 26 | 59 | 57 | 0.107 |
| 392873 | 63 | 33 | 73 | 71 | 0.205 |
| 392874 | 75 | 40 | 87 | 83 | 0.336 |
| 392875 | 90 | 46 | 105 | 97 | 0.576 |
| 392876 | 110 | 55 | 128 | 116 | 1.009 |
| 392877 | 125 | 63 | 146 | 131 | 1.522 |
| 392878 | 140 | 70 | 162 | 146 | 1.945 |
| 392879 | 160 | 80 | 185 | 166 | 2.873 |
| 392880 | 200 | 101 | 225 | 207 | 4.446 |
| 392881 | 225 | 114 | 252 | 233 | 5.989 |
| 392882 | 250 | 131 | 282 | 263 | 10.014 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
