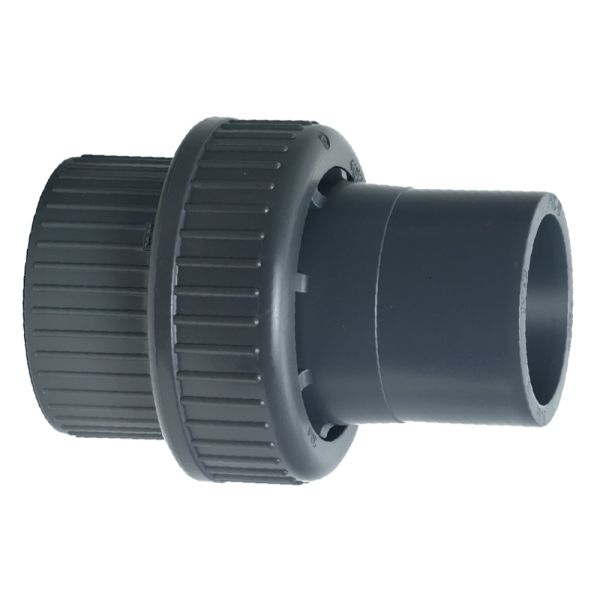

Georg Fischer PVCu Metric PRO-FIT Union Plain FPM
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 16mm - 63mm
- FPM O-Ring
- Dimension: DIN 8061/62
| Product Code | d (mm) | d1 (mm) | z1 (mm) | z2 (mm) | z3 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 393 | 16 | 12 | 22 | 10 | 24 | 35 | 36 | 24 | 3/4 | 0.029 |
| 393 | 20 | 16 | 24 | 10 | 26 | 43 | 40 | 26 | 1 | 0.046 |
| 393 | 25 | 20 | 25 | 10 | 28 | 51 | 44 | 29 | 1 1/4 | 0.073 |
| 393 | 32 | 25 | 27 | 10 | 30 | 58 | 49 | 33 | 1 1/2 | 0.097 |
| 393 | 40 | 32 | 31 | 12 | 35 | 74 | 57 | 39 | 2 | 0.169 |
| 393 | 50 | 40 | 35 | 14 | 40 | 83 | 66 | 46 | 2 1/4 | 0.250 |
| 393 | 63 | 50 | 39 | 18 | 46 | 100 | 77 | 58 | 2 3/4 | 0.437 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
