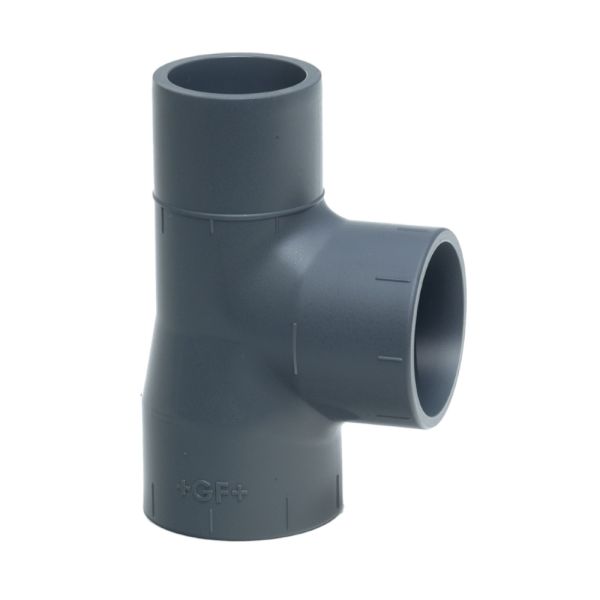

Georg Fischer PVCu Metric PRO-FIT Tee 90° Plain
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 16 bar
- Sizes available: 20mm - 63mm
- Dimension: DIN 8061/62
Useful info:
The PRO-FIT PVCu fittings have socket ends (d) and a spigot end (d1) to allow a fitting to fitting connection where space is limited.
| Product Code | d (mm) | d1 (mm) | z (mm) | z1 (mm) | z2 (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | Weight (kg) |
| 392937 | 20 | 16 | 11 | 17 | 19 | 25 | 27 | 33 | 27 | 0.017 |
| 392938 | 25 | 20 | 14 | 19 | 22 | 31 | 33 | 38 | 33 | 0.022 |
| 392939 | 32 | 25 | 17 | 24 | 27 | 38 | 39 | 46 | 39 | 0.051 |
| 392940 | 40 | 32 | 23 | 30 | 34 | 47 | 47 | 56 | 49 | 0.098 |
| 392941 | 50 | 40 | 26 | 36 | 41 | 58 | 57 | 67 | 57 | 0.164 |
| 392942 | 63 | 50 | 33 | 45 | 52 | 73 | 71 | 83 | 71 | 0.329 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
