Georg Fischer PVCu Metric Elbow 45° Plain

Georg Fischer PVCu Metric Elbow 45° Plain

Skip to the end of the images gallery

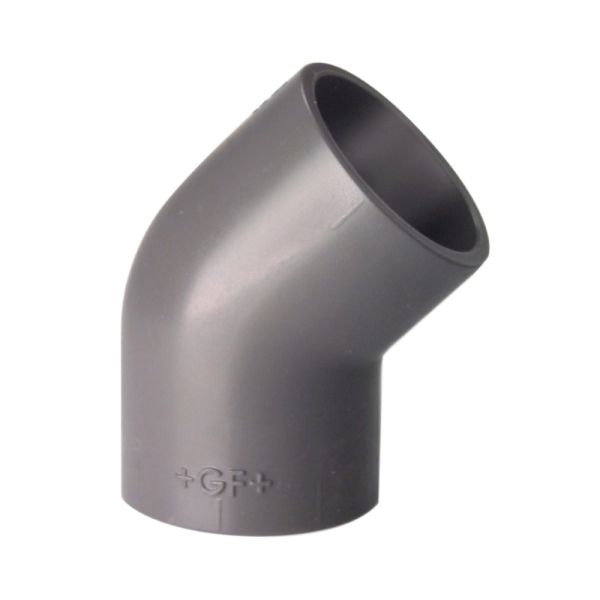

main product photo

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Manufacturer: Georg Fischer
Material: polyvinyl chloride - unplasticised (PVCu)
Temperature rating: 0° - 60°C
Sizes available: 16mm - 400mm
Dimension: DIN 8061/62

GF-elbow-45-diagram

Product Code	d (mm)	z (mm)	D (mm)	L (mm)	Weight (kg)
392889	16	5	21	19	0.008
392890	20	5	25	21	0.011
392891	25	6	31	25	0.017
392892	32	8	38	30	0.021
392893	40	10	47	36	0.048
392894	50	12	59	43	0.086
392895	63	14	73	52	0.160
392896	75	17	87	61	0.253
392897	90	20	105	71	0.430
392898	110	25	127	86	0.750
392899	125	28	146	97	1.193
392900	140	32	162	108	1.570
392901	160	36	185	122	2.280
392902	200	43	225	149	3.288
392903	225	49	250	168	4.191
392904	250	60	282	192	7.115
392905	280	66	318	213	10.340
392906	315	74	356	239	14.292
392907	400	94	442	302	25.268

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Grouped product items
Code	Product Name	List Price	You Save	You Pay	Quantity
392889	GF PVCu Elbow 45° Plain 16mm	£9.72	37%	£6.12
392890	GF PVCu Elbow 45° Plain 20mm	£11.16	37%	£7.03
392891	GF PVCu Elbow 45° Plain 25mm	£11.82	37%	£7.45
392892	GF PVCu Elbow 45° Plain 32mm	£14.39	37%	£9.07
392893	GF PVCu Elbow 45° Plain 40mm	£20.58	37%	£12.97
392894	GF PVCu Elbow 45° Plain 50mm	£25.85	37%	£16.29
392895	GF PVCu Elbow 45° Plain 63mm	£36.45	37%	£22.96
392896	GF PVCu Elbow 45° Plain 2 1/2" or 75mm	£57.28	37%	£36.09
392897	GF PVCu Elbow 45° Plain 90mm	£85.87	37%	£54.10
392898	GF PVCu Elbow 45° Plain 110mm	£176.32	37%	£111.08
392899	GF PVCu Elbow 45° Plain 125mm	£260.35	37%	£164.02
392900	GF PVCu Elbow 45° Plain 140mm	£298.37	37%	£187.97
392901	GF PVCu Elbow 45° Plain 160mm	£363.75	37%	£229.16
392902	GF PVCu Elbow 45° Plain 200mm	£617.64	37%	£389.11
392903	GF PVCu Elbow 45° Plain 225mm	£832.26	37%	£524.32
392904	GF PVCu Elbow 45° Plain 250mm	£1,088.64	37%	£685.84
392905	GF PVCu Elbow 45° Plain 280mm	£1,497.01	37%	£943.12
392906	GF PVCu Elbow 45° Plain 315mm	£2,083.14	37%	£1,312.38
392907	GF PVCu Elbow 45° Plain 400mm	£2,664.21	37%	£1,678.45
