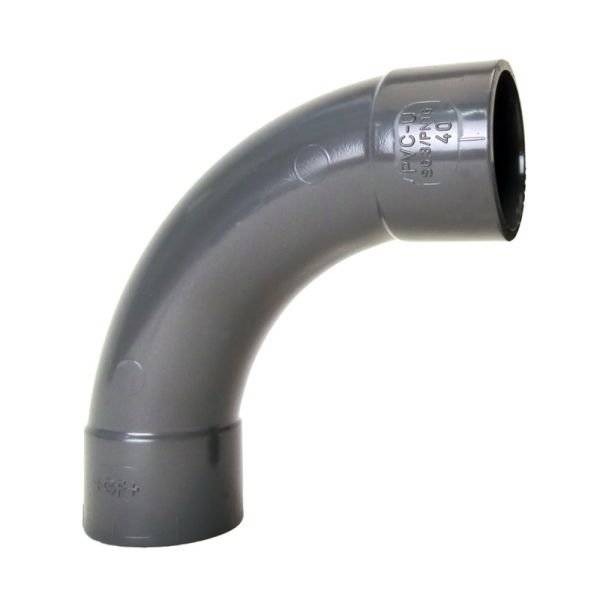

Georg Fischer PVCu Metric Bend 90° Plain
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 20mm - 160mm
- Dimension: DIN 8061/62
| Product Code | d (mm) | z (mm) | D (mm) | L (mm) | Weight (kg) |
| 392848 | 20 | 40 | 27 | 56 | 0.029 |
| 392849 | 25 | 50 | 33 | 69 | 0.049 |
| 392850 | 32 | 64 | 38 | 86 | 0.074 |
| 392851 | 40 | 80 | 47 | 106 | 0.121 |
| 392852 | 50 | 100 | 61 | 131 | 0.298 |
| 392853 | 63 | 126 | 76 | 164 | 0.516 |
| 392854 | 75 | 150 | 90 | 194 | 0.798 |
| 392855 | 90 | 180 | 108 | 231 | 1.373 |
| 392856 | 110 | 220 | 137 | 281 | 2.699 |
| 392857 | 140 | 280 | 168 | 356 | 5.204 |
| 392858 | 160 | 320 | 192 | 406 | 8.298 |
