Georg Fischer PVCu Metric Composite Union Plain F SS EPDM

Georg Fischer PVCu Metric Composite Union Plain F SS EPDM

Skip to the end of the images gallery

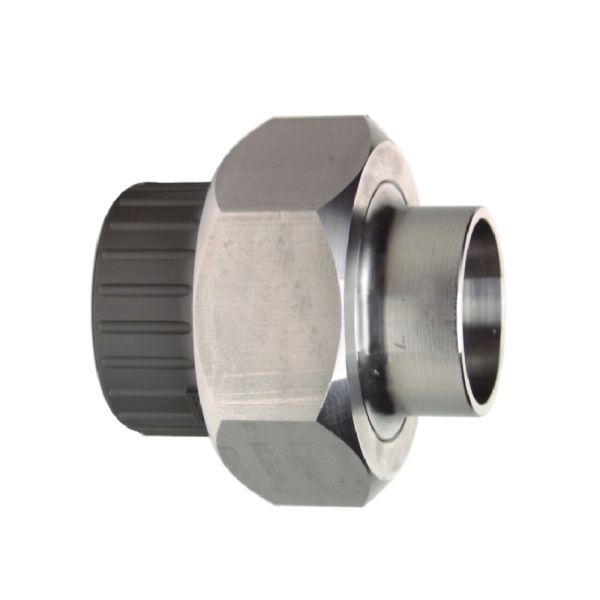

main product photo

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Manufacturer: Georg Fischer
Material: polyvinyl chloride - unplasticised (PVCu)
Temperature rating: 0° - 60°C
Pressure rating: 16 bar
Sizes available: 16mm x 3/8" - 63mm x 2"
Stainless steel female welding end
EPDM O-Ring

GF-union-SS-socket-diagram

Product Code	d (mm)	d1 (mm)	z (mm)	L (mm)	L1 (mm)	L2 (mm)	e (mm)	s (mm)	G (inch)	Weight (kg)
393468	16	17	28	42	18	24	1.6	32	3/4	0.101
393469	20	21	32	48	22	26	2.0	41	1	0.176
393470	25	27	33	52	23	29	2.0	46	1 1/4	0.204
393471	32	34	36	58	26	33	2.0	55	1 1/2	0.313
393472	40	42	38	64	26	39	2.0	68	2	0.493
393473	50	48	42	73	28	46	2.0	74	2 1/4	0.566
393474	63	60	50	88	32	58	2.6	88	2 3/4	0.902

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Grouped product items
Code	Product Name	List Price	You Save	You Pay	Quantity
393468	GF PVCu Composite Union Plain F SS EPDM 16mm	£118.78	37%	£74.83
393469	GF PVCu Composite Union Plain F SS EPDM 20mm	£143.37	37%	£90.32
393470	GF PVCu Composite Union Plain F SS EPDM 25mm	£165.96	37%	£104.55
393471	GF PVCu Composite Union Plain F SS EPDM 32mm	£198.89	37%	£125.30
393472	GF PVCu Composite Union Plain F SS EPDM 40mm	£277.41	37%	£174.77
393473	GF PVCu Composite Union Plain F SS EPDM 50mm	£306.22	37%	£192.92
393474	GF PVCu Composite Union Plain F SS EPDM 63mm	£418.70	37%	£263.78
