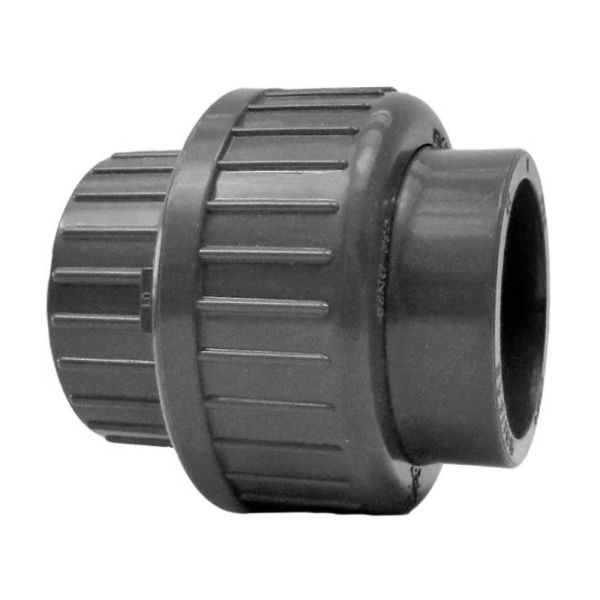

Georg Fischer PVCu Adaptor Union ASTM Plain Metric x Inch
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 16mm x 3/8" - 63mm x 2"
- ASTM
- EPDM O-Ring
- Dimension: DIN 8061/62
| Product Code | d (mm) | d1 (inch) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 393 | 16 | 3/8 | 3 | 10 | 35 | 22 | 24 | 3/4 | 0.022 |
| 393 | 20 | 1/2 | 3 | 10 | 43 | 25 | 26 | 1 | 0.042 |
| 393 | 25 | 3/4 | 3 | 10 | 51 | 28 | 29 | 1 1/4 | 0.065 |
| 393 | 32 | 1 | 3 | 10 | 58 | 32 | 33 | 1 1/2 | 0.103 |
| 393 | 40 | 1 1/4 | 3 | 12 | 72 | 35 | 39 | 2 | 0.174 |
| 393 | 50 | 1 1/2 | 3 | 14 | 83 | 38 | 46 | 2 1/4 | 0.239 |
| 393 | 63 | 2 | 3 | 18 | 100 | 41 | 58 | 2 3/4 | 0.356 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
