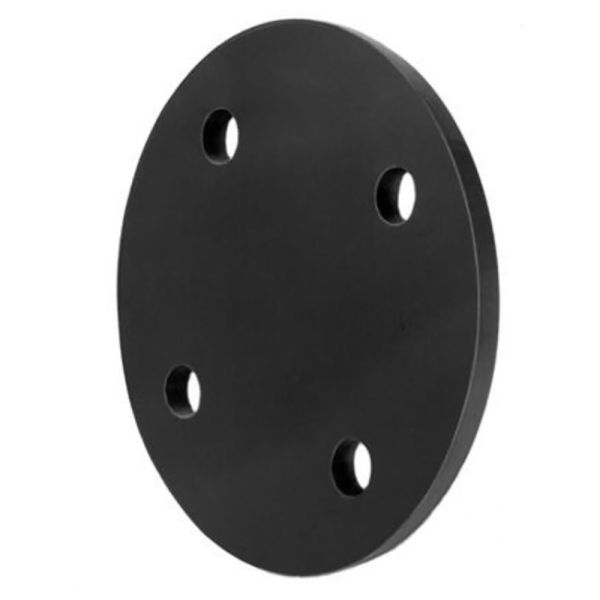

Georg Fischer PVCu Blanking Flange Table D/E
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 15 bar
| Product Code | d (Inch) | D (mm) | c (mm) | h (mm) | Holes | Weight (kg) |
| 394385 |
1/2 | 95 | 15 | 10 | 4 | 0.080 |
| 394386 | 3/4 | 105 | 15 | 10 | 4 | 0.110 |
| 394387 | 1 | 115 | 15 | 10 | 4 | 0.120 |
| 394388 | 1 1/4 | 140 | 16 | 10 | 4 | 0.190 |
| 394389 | 1 1/2 | 150 | 16 | 10 | 4 | 0.240 |
| 394390 | 2 | 165 | 18 | 10 | 4 | 0.370 |
| 394391 | 3 | 200 | 18 | 12 | 4 | 0.520 |
| 394392 | 4 | 220 | 18 | 17 | 8 | 0.730 |
| 394393 | 4 | 220 | 18 | 17 | 8 | 0.730 |
| 394394 | 6 | 285 | 22 | 22 | 8 | 1.700 |
