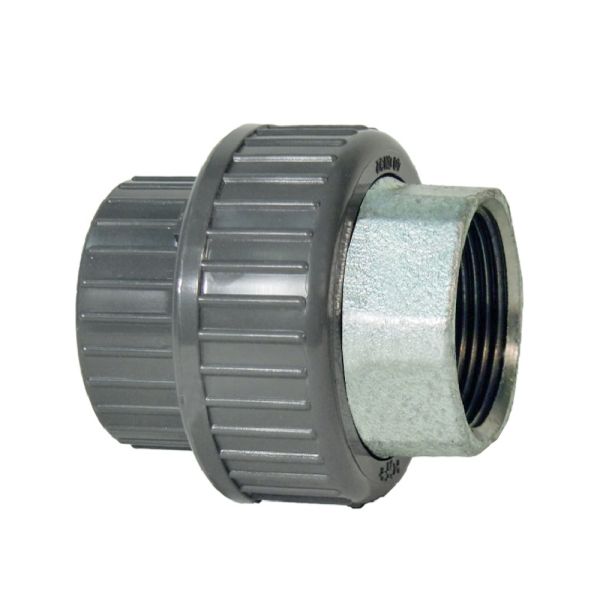

Georg Fischer PVCu Union Plain x Malleable Iron F Thread
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 15 bar (1/2" to 2") 9 bar (2 1/2" to 3")
- Malleable iron female parallel thread
- EPDM O-Ring
| Product Code | d (Inch) | Rp (inch) | z1 (mm) | z2 (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | s (mm) | G (inch) | Weight (kg) |
| 394434 | 1/2 | 1/2 | 9 | 10 | 43 | 48 | 22 | 26 | 25 | 1 | 0.120 |
| 394435 | 3/4 | 3/4 | 7 | 10 | 51 | 51 | 22 | 29 | 31 | 1 1/4 | 0.190 |
| 394436 | 1 | 1 | 9 | 10 | 58 | 58 | 26 | 33 | 38 | 1 1/2 | 0.250 |
| 394437 | 1 1/4 | 1 1/4 | 12 | 12 | 72 | 69 | 31 | 39 | 48 | 2 | 0.400 |
| 394438 | 1 1/2 | 1 1/2 | 14 | 14 | 83 | 78 | 33 | 46 | 54 | 2 1/4 | 0.510 |
| 394439 | 2 | 2 | 11 | 18 | 100 | 91 | 35 | 58 | 67 | 2 3/4 | 0.780 |
| 394440 | 3 | 3 | 15 | 19 | 150 | 114 | 45 | 69 | 96 | Tr 128x5 | 1.740 |
