Union Plain x Thread EPDM
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

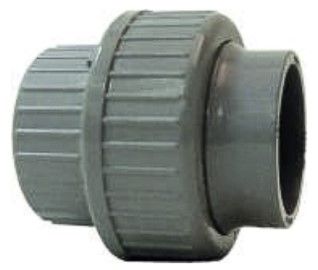

These Unions are plain x parallel female thread and come with EPDM O-ring gaskets.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16Â Bar |
| Size Range | 16mm x 3/8" - 63mm x 2" |
| Product Code | d (mm) | d1 (inch) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 398689 | 16 | 3/8 | 3 | 13 | 35 | 17 | 24 | 3/4 | 0.022 |
| 398690 | 20 | 1/2 | 3 | 13 | 43 | 19 | 26 | 1 | 0.047 |
| 398691 | 25 | 3/4 | 3 | 14 | 51 | 22 | 29 | 1 1/4 | 0.065 |
| 398692 | 32 | 1 | 3 | 15 | 58 | 25 | 32 | 1 1/2 | 0.103 |
| 398693 | 40 | 1 1/4 | 3 | 19 | 74 | 31 | 38 | 2 | 0.155 |
| 398694 | 50 | 1 1/2 | 3 | 26 | 83 | 34 | 45 | 2 1/4 | 0.239 |
| 398695 | 63 | 2 | 3 | 33 | 100 | 41 | 56 | 2 3/4 | 0.400 |
Â
