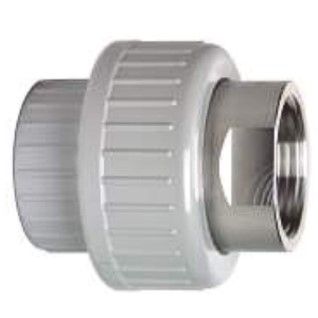

Union Plain x SS F Thread EPDM
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
These Unions are plain x stainless steel parallel female thread and come with EPDM O-ring gaskets.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 16mm x 3/8" - 63mm x 2" |
| Product Code | d (mm) | Rp (inch) | z1 (mm) | z2 (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | s (mm) | G (inch) | Weight (kg) |
| 398717 | 16 | 3/8 | 9 | 10 | 35 | 43 | 19 | 24 | 19 | 3/4 | 0.053 |
| 398718 | 20 | 1/2 | 11 | 10 | 43 | 50 | 24 | 26 | 24 | 1 | 0.096 |
| 398719 | 25 | 3/4 | 11 | 10 | 51 | 55 | 26 | 29 | 29 | 1 1/4 | 0.154 |
| 398720 | 32 | 1 | 12 | 10 | 58 | 61 | 29 | 33 | 36 | 1 1/2 | 0.212 |
| 398721 | 40 | 1 1/4 | 14 | 12 | 74 | 71 | 33 | 39 | 45 | 2 | 0.356 |
| 398722 | 50 | 1 1/2 | 15 | 14 | 83 | 79 | 34 | 46 | 54 | 2 1/4 | 0.455 |
| 398723 | 63 | 2 | 15 | 18 | 100 | 95 | 39 | 58 | 63 | 2 3/4 | 0.721 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
