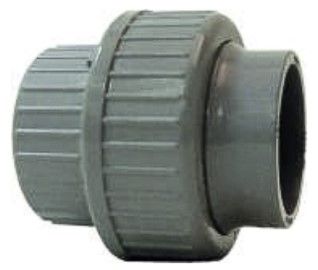

Union Plain EPDM
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
These Unions come with EPDM O-ring gaskets.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 - 63mm = 16 Bar |
| Size Range | 16mm - 110mm |
| Product Code | d (mm) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G/Tr (inch) | Weight (kg) |
| 398669 | 16 | 3 | 8 | 35 | 19 | 24 | 3/4 | 0.028 |
| 398670 | 20 | 3 | 9 | 43 | 21 | 26 | 1 | 0.046 |
| 398671 | 25 | 3 | 9 | 53 | 24 | 29 | 1 1/4 | 0.063 |
| 398672 | 32 | 3 | 9 | 60 | 27 | 33 | 1 1/2 | 0.090 |
| 398673 | 40 | 3 | 10 | 74 | 32 | 39 | 2 | 0.158 |
| 398674 | 50 | 3 | 10 | 83 | 33 | 46 | 2 1/4 | 0.214 |
| 398675 | 63 | 3 | 10 | 103 | 40 | 58 | 2 3/4 | 0.360 |
| 398676 | 75 | 3 | 18 | 135 | 47 | 62 | Tr108x5 | 0.650 |
| 398677 | 90 | 5 | 18 | 158 | 56 | 69 | Tr128x5 | 0.994 |
| 398678 | 110 | 5 | 11 | 188 | 66 | 72 | Tr154x6 | 1.509 |
Â
