Union Bush Plain
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

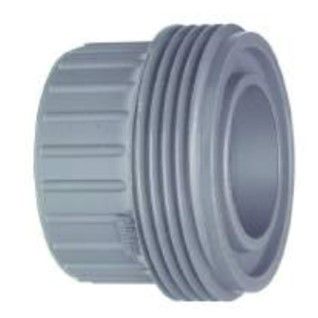

These plain union bushes are designed for connection to standard PVC-C unions and contain a groove in the jointing face for an O-ring.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 - 63mm = 16 Bar |
| Size Range | 16mm - 110mm |
| Product Code | d (mm) | D (mm) | z (mm) | L (mm) | G/Tr (inch) | Weight (kg) |
| 398800 | 16 | 24 | 11 | 25 | 3/4 | 0.009 |
| 398801 | 20 | 28 | 12 | 26 | 1 | 0.014 |
| 398802 | 25 | 33 | 11 | 29 | 1 1/4 | 0.024 |
| 398803 | 32 | 41 | 10 | 33 | 1 1/2 | 0.038 |
| 398804 | 40 | 50 | 12 | 39 | 2 | 0.066 |
| 398805 | 50 | 62 | 14 | 46 | 2 1/4 | 0.083 |
| 398806 | 63 | 77 | 19 | 58 | 2 3/4 | 0.158 |
| 398807 | 75 | 93 | 18 | 62 | Tr108x5 | 0.230 |
| 398808 | 90 | 110 | 18 | 69 | Tr128x5 | 0.381 |
| 398809 | 110 | 133 | 11 | 72 | Tr154x5 | 0.480 |
Â
