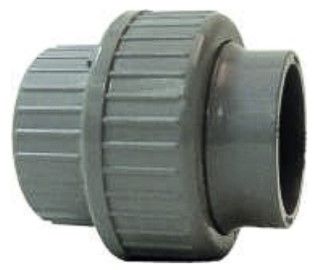

Union ASTM EPDM Plain x Inch
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
These Unions are plain x ASTM inch and come with EPDM O-ring gaskets.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
10 Bar |
| Size Range | 16mm x 3/8" - 63mm x 2" |
| Product Code | d (mm) | d1 (inch) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 398703 | 16 | 3/8 | 4 | 10 | 35 | 17 | 24 | 3/4 | 0.022 |
| 398704 | 20 | 1/2 | 2 | 10 | 43 | 19 | 26 | 1 | 0.047 |
| 398705 | 25 | 3/4 | 4 | 10 | 51 | 22 | 29 | 1 1/4 | 0.065 |
| 398706 | 32 | 1 | 4 | 10 | 58 | 25 | 33 | 1 1/2 | 0.103 |
| 398707 | 40 | 1 1/4 | 6 | 12 | 74 | 29 | 39 | 2 | 0.174 |
| 398708 | 50 | 1 1/2 | 11 | 14 | 83 | 34 | 46 | 2 1/4 | 0.239 |
| 398709 | 63 | 2 | 17 | 18 | 100 | 41 | 58 | 2 3/4 | 0.435 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
