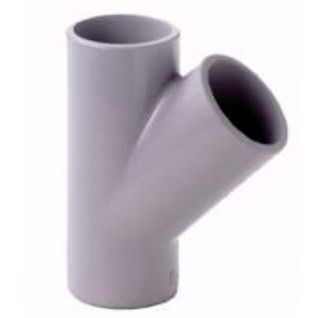

Tee 45° Plain

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	20 - 63mm = 10 Bar 75 - 110mm = 6 Bar
Size Range	20 - 110mm

GF-tee-diagram

Product Code	d (mm)	z (mm)	z1 (mm)	D (mm)	L (mm)	L1 (mm)	Weight (kg)
398562	20	30	6	28	68	46	0.039
398563	25	36	9	33	83	55	0.062
398564	32	45	10	41	99	67	0.102
398565	40	56	10	50	118	82	0.172
398566	50	66	12	60	140	97	0.289
398567	63	85	14	74	175	123	0.449
398568	75	101	18	91	207	145	0.857
398569	90	122	20	107	245	173	1.334
398570	110	149	27	134	298	210	2.677

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398562	GF PVC-C Tee 45° Plain 20mm	£23.73	15%	£20.17
398563	GF PVC-C Tee 45° Plain 25mm	£25.30	15%	£21.51
398564	GF PVC-C Tee 45° Plain 32mm	£31.66	15%	£26.91
398565	GF PVC-C Tee 45° Plain 40mm	£52.10	15%	£44.29
398566	GF PVC-C Tee 45° Plain 50mm	£60.99	15%	£51.84
398567	GF PVC-C Tee 45° Plain 63mm	£98.93	15%	£84.09
398568	GF PVC-C Tee 45° Plain 75mm	£193.72	15%	£164.66
398569	GF PVC-C Tee 45° Plain 90mm	£311.45	15%	£264.73
398570	GF PVC-C Tee 45° Plain 110mm	£586.21	15%	£498.28
