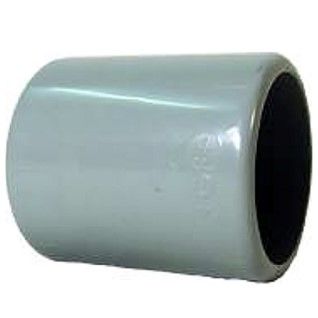

Socket Plain
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 - 160mm = 16 Bar |
| Size Range | 16 - 225mm |
| Product Code | d (mm) | z (mm) | D (mm) | L (mm) | Weight (kg) |
| 398611 | 16 | 3 | 22 | 31 | 0.008 |
| 398612 | 20 | 3 | 26 | 35 | 0.010 |
| 398613 | 25 | 3 | 31 | 41 | 0.017 |
| 398614 | 32 | 3 | 39 | 47 | 0.029 |
| 398615 | 40 | 3 | 49 | 55 | 0.049 |
| 398616 | 50 | 3 | 61 | 65 | 0.085 |
| 398617 | 63 | 3 | 76 | 79 | 0.155 |
| 398618 | 75 | 4 | 87 | 92 | 0.204 |
| 398619 | 90 | 5 | 110 | 107 | 0.338 |
| 398620 | 110 | 5 | 131 | 132 | 0.769 |
| 398621 | 160 | 8 | 183 | 180 | 1.605 |
| 398622 | 225 | 10 | 253 | 248 | 3.644 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
