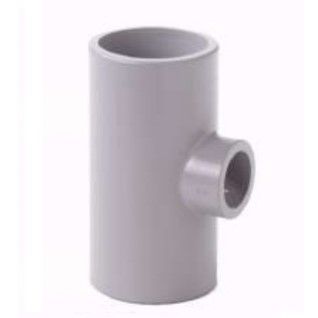

Reducing Tee 90° Plain
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 25 x 20 - 110 x 90mm |
| Product Code | d (mm) | d1 (mm) | z (mm) | z1 (mm) | D (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 398571 | 25 | 20 | 14 | 14 | 33 | 33 | 30 | 0.042 |
| 398572 | 32 | 25 | 17 | 17 | 41 | 39 | 36 | 0.069 |
| 398573 | 40 | 25 | 23 | 23 | 50 | 49 | 42 | 0.120 |
| 398574 | 40 | 32 | 23 | 23 | 50 | 49 | 45 | 0.120 |
| 398575 | 50 | 20 | 28 | 28 | 62 | 59 | 44 | 0.196 |
| 398576 | 50 | 25 | 28 | 28 | 62 | 59 | 47 | 0.192 |
| 398577 | 50 | 32 | 28 | 28 | 62 | 59 | 50 | 0.199 |
| 398578 | 63 | 25 | 34 | 34 | 77 | 73 | 53 | 0.358 |
| 398579 | 63 | 32 | 35 | 34 | 77 | 73 | 56 | 0.368 |
| 398580 | 63 | 50 | 35 | 34 | 77 | 73 | 65 | 0.354 |
| 398581 | 75 | 63 | 41 | 47 | 92 | 84 | 84 | 0.766 |
| 398582 | 90 | 32 | 46 | 75 | 111 | 97 | 97 | 1.436 |
| 398583 | 90 | 63 | 46 | 66 | 111 | 97 | 97 | 1.166 |
| 398584 | 110 | 32 | 55 | 101 | 128 | 116 | 116 | 2.796 |
| 398585 | 110 | 90 | 55 | 71 | 128 | 116 | 116 | 1.780 |
