Elbow 90° Plain x Thread

Skip to the beginning of the images gallery

Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

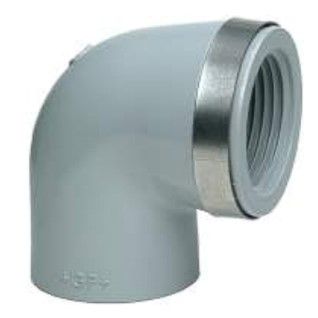

These 90° Elbows have a plain end and a female threaded end with a stainless steel reinforcing ring. They can be connected to plastic or metal threads whilst the plain end should be solvent cemented to plastic pipe or fittings.

Manufacturer	Georg Fischer
Temperature Range	0°C to 80°C
Pressure Rating	16 Bar
Size Range	20mm x 1/2" - 63mm x 2"

GF-plain-x-thread-elbow-diagram

Product Code	d (mm)	Rp (inch)	z1 (mm)	z2 (mm)	D (mm)	L (mm)	Weight (kg)
398644	20	1/2	11	11	30	27	0.024
398645	25	3/4	14	14	35	33	0.037
398646	32	1	17	22	45	39	0.063
398647	40	1 1/4	23	27	55	50	0.134
398648	50	1 1/2	27	36	62	58	0.199
398649	63	2	33	46	75	73	0.337

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
398644	GF PVC-C Elbow 90° Plain x Thread F 20mm x 1/2"	£26.33	15%	£22.38
398645	GF PVC-C Elbow 90° Plain x Thread F 25mm x 3/4"	£28.76	15%	£24.45
398646	GF PVC-C Elbow 90° Plain x Thread F 32mm x 1"	£34.62	15%	£29.43
398647	GF PVC-C Elbow 90° Plain x Thread F 40mm x 1 1/4"	£56.77	15%	£48.25
398648	GF PVC-C Elbow 90° Plain x Thread F 50mm x 1 1/2"	£81.13	15%	£68.96
398649	GF PVC-C Elbow 90° Plain x Thread F 63mm x 2"	£109.17	15%	£92.79
