Georg Fischer PROGEF Pipe 6 Bar
Useful Information

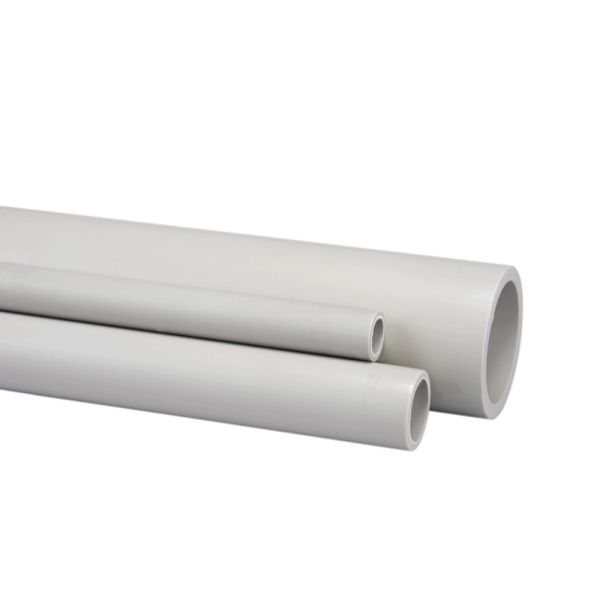

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
This Georg Fischer PROGEF PP pipe has a pressure rating of up to PN6 at an operating temperature of 20°C. Pressure ratings will be reduced with higher temperatures and aggressive flow media.
| Pressure Rating | 6 bar @ 20°C |
| Temperature Range | 0°C to 80°C |
| Length | 5-meters |
| Size Range | 50mm to 500mm Ø |
| Colour | Light grey (RAL 7032) |
| Product Code | Diameter (mm) | Wall Thickness (mm) | Length (m) | Weight (kg) |
| 397284 | 50 | 2.9 | 5 | 2.110 |
| 397285 | 63 | 3.6 | 5 | 3.295 |
| 397286 | 75 | 4.3 | 5 | 4.675 |
| 397287 | 90 | 5.1 | 5 | 6.650 |
| 397288 | 110 | 6.3 | 5 | 9.950 |
| 397289 | 125 | 7.1 | 5 | 12.750 |
| 397290 | 140 | 8.0 | 5 | 16.000 |
| 397291 | 160 | 9.1 | 5 | 20.850 |
| 397292 | 180 | 10.2 | 5 | 26.250 |
| 397293 | 200 | 11.4 | 5 | 32.500 |
| 397294 | 225 | 12.8 | 5 | 40.950 |
| 397295 | 250 | 14.2 | 5 | 50.500 |
| 397296 | 280 | 15.9 | 5 | 63.000 |
| 397297 | 315 | 17.9 | 5 | 80.000 |
| 397298 | 355 | 20.1 | 5 | 101.500 |
| 397299 | 400 | 22.7 | 5 | 128.500 |
| 397300 | 450 | 25.5 | 5 | 162.500 |
| 397301 | 500 | 28.4 | 5 | 201.000 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
