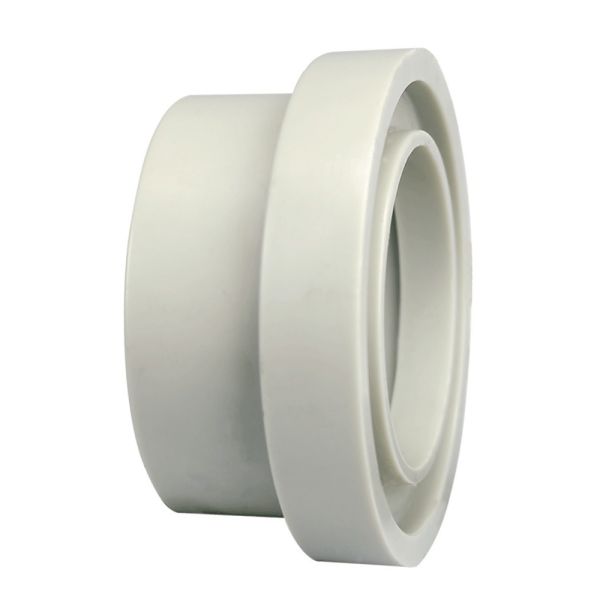

Georg Fischer PROGEF SF Stub Flange O-Ring Groove
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
| Material | PP-H w/Steel core |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 16 Bar |
| Size Range | 20 - 110mm |
| Product Code | d (mm) | D (mm) | d1 (mm) | D1 (mm) | z (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 397395 | 20 | 27 | 16 | 34 | 8 | 22 | 9 | 0.007 |
| 397396 | 25 | 33 | 21 | 41 | 8 | 24 | 10 | 0.012 |
| 397397 | 32 | 41 | 28 | 50 | 8 | 26 | 10 | 0.018 |
| 397398 | 40 | 50 | 36 | 61 | 10 | 30 | 13 | 0.027 |
| 397399 | 50 | 61 | 45 | 73 | 10 | 33 | 13 | 0.043 |
| 397400 | 63 | 76 | 57 | 90 | 10 | 37 | 14 | 0.070 |
| 397401 | 75 | 90 | 69 | 106 | 10 | 40 | 15 | 0.105 |
| 397402 | 90 | 108 | 84 | 125 | 12 | 47 | 16 | 0.170 |
| 397403 | 110 | 131 | 100 | 150 | 13 | 55 | 18 | 0.263 |
