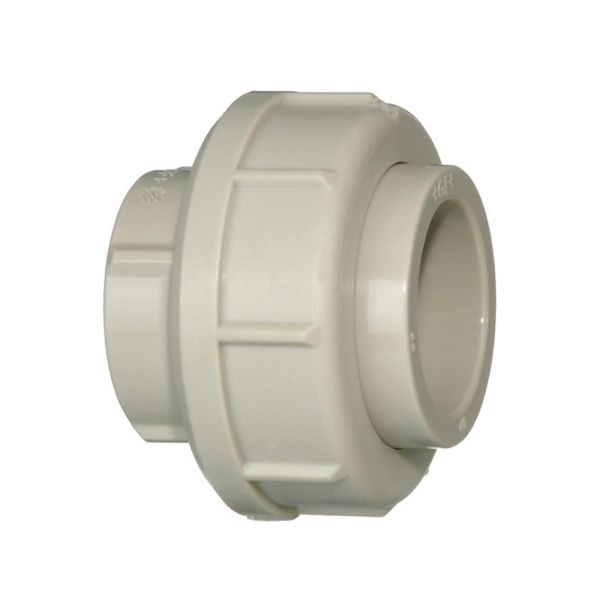

Georg Fischer PROGEF SF Union Adaptor Plain Metric x Inch ASTM
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
These PROGEF adaptor unions have O-ring groove faces and a metric socket fusion end and an ASTM inch socket fusion end.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 10 Bar |
| Size Range | 16mm - 110mm |
| Product Code | d (mm x inch) | z1 (mm) | z2 (mm) | D (mm) | L1 (mm) | L2 (mm) | G (inch) | Weight (kg) |
| 397491 | 20 x 1/2 | 5 | 12 | 48 | 19 | 26 | 1 | 0.041 |
| 397492 | 25 x 3/4 | 5 | 12 | 58 | 21 | 28 | 1 1/4 | 0.061 |
| 397493 | 32 x 1 | 5 | 12 | 65 | 23 | 30 | 1 1/2 | 0.079 |
| 397494 | 40 x 1 1/4 | 5 | 14 | 79 | 25 | 34 | 2 | 0.108 |
| 397495 | 50 x 1 1/2 | 5 | 16 | 91 | 28 | 39 | 2 1/4 | 0.133 |
| 397496 | 63 x 2 | 5 | 20 | 111 | 32 | 47 | 2 3/4 | 0.252 |
