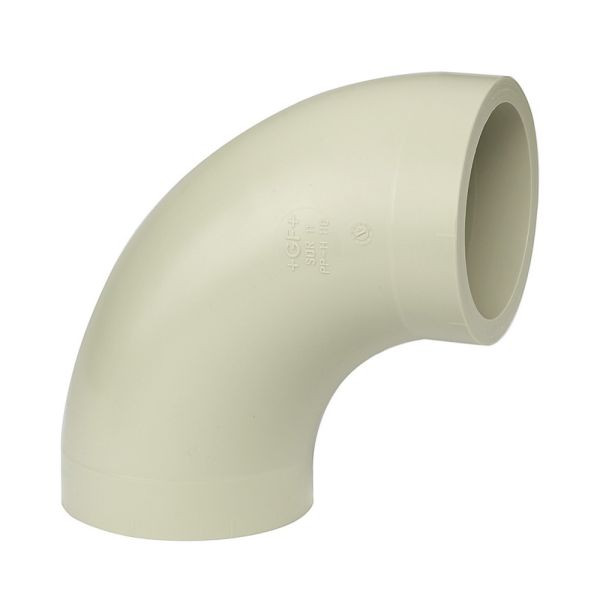

Georg Fischer PROGEF BF Bend 90° Plain 10 Bar
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
These bends are manufactured from PP-H designed for conventional butt-welding in accordance to DVS 2207. They are also infrared (IR Plus®) compatible.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 10 Bar |
| Size Range | 20 - 225mm |
| Product Code | d (mm) | L (mm) | L1 (mm) | R (mm) | e (mm) | Weight (kg) |
| 397524 | 20 | 38 | 23 | 15.00 | 1.9 | 0.008 |
| 397525 | 25 | 42 | 23 | 19.00 | 2.3 | 0.013 |
| 397526 | 32 | 46 | 22 | 24.00 | 2.9 | 0.022 |
| 397527 | 40 | 51 | 21 | 30.00 | 3.7 | 0.040 |
| 397528 | 50 | 58 | 21 | 37.00 | 4.6 | 0.067 |
| 397529 | 63 | 66 | 21 | 45.00 | 5.8 | 0.117 |
| 397530 | 75 | 75 | 21 | 71.25 | 6.8 | 0.178 |
| 397531 | 90 | 90 | 22 | 85.50 | 8.2 | 0.308 |
| 397532 | 110 | 110 | 25 | 104.50 | 10.0 | 0.556 |
| 397533 | 125 | 125 | 28 | 116.00 | 11.4 | 0.818 |
| 397534 | 140 | 140 | 33 | 131.00 | 12.7 | 1.148 |
| 397535 | 160 | 160 | 33 | 151.00 | 14.6 | 1.699 |
| 397536 | 180 | 180 | 33 | 171.00 | 16.4 | 2.394 |
| 397537 | 200 | 200 | 33 | 190.00 | 18.2 | 3.264 |
| 397538 | 225 | 220 | 33 | 210.00 | 20.5 | 4.535 |
