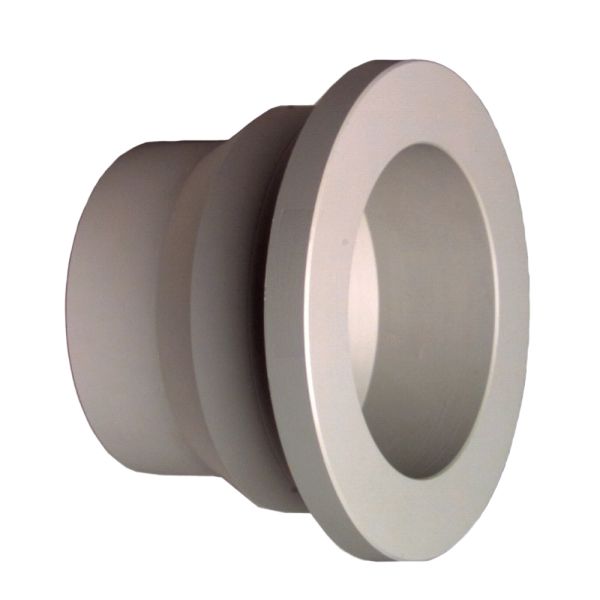

Georg Fischer PROGEF BF Outlet Flange 6 Bar
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.
Flange rings for socket systems should always be used with these Outlet flange adaptors.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 6 Bar |
| Size Range | 40 - 315mm |
| Product Code | d (mm) | D (mm) | D1 (mm) | D2 (mm) | L (mm) | L1 (mm) | L2 (mm) | r (mm) | e (mm) | Weight (kg) |
| 397861 | 40 | 80 | 37 | 50 | 64 | 30 | 11 | 3 | 2.3 | 0.048 |
| 397862 | 50 | 90 | 43 | 61 | 67 | 30 | 12 | 3 | 2.9 | 0.091 |
| 397863 | 63 | 105 | 54 | 76 | 74 | 30 | 14 | 4 | 3.6 | 0.096 |
| 397864 | 75 | 125 | 70 | 90 | 78 | 30 | 16 | 4 | 4.3 | 0.170 |
| 397865 | 90 | 140 | 82 | 108 | 87 | 35 | 17 | 4 | 5.1 | 0.260 |
| 397866 | 110 | 160 | 105 | 131 | 102 | 41 | 18 | 4 | 6.3 | 0.429 |
| 397867 | 140 | 190 | 130 | 165 | 124 | 47 | 18 | 4 | 8.0 | 0.808 |
| 397868 | 160 | 215 | 158 | 188 | 149 | 52 | 18 | 4 | 9.1 | 1.107 |
| 397869 | 225 | 270 | 206 | 248 | 180 | 55 | 24 | 4 | 12.7 | 2.324 |
| 397870 | 280 | 325 | 259 | 308 | 240 | 63 | 25 | 4 | 15.9 | 3.563 |
| 397871 | 315 | 375 | 308 | 346 | 272 | 66 | 25 | 4 | 17.9 | 2.450 |
