Tee 90° Branch Thread F Steel FPM

Useful Information

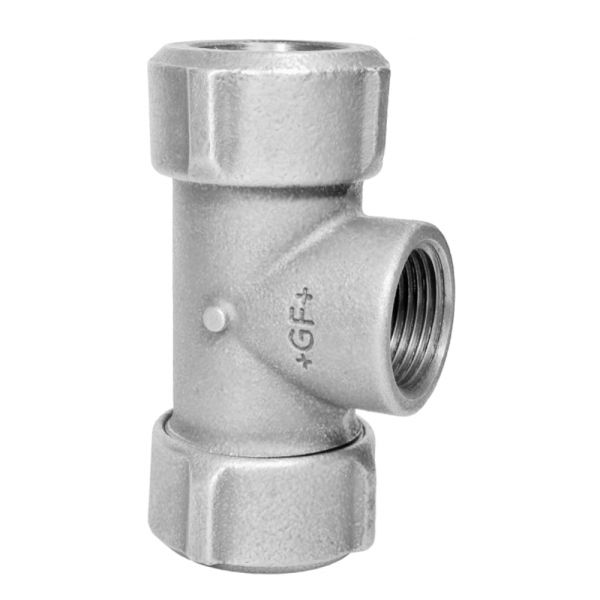

These PRIMOFIT compression tees have a female threaded branch and FPM gaskets for connection to ISO 65 Steel pipe and Rp/EN 1-226-1 threaded pipe.

Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Fuel
up to 16 bar - Compressed Air
Operating Temperature -20°C to +80°C

GF-primofit-threaded-branch-tee-diagram

Product Code Dim. St (inch) Dim. RP (inch) D (mm) L (mm) L1 (mm) x (mm) Weight (kg)
399859 1/2 1/2 45 101 27 30 - 34 0.380
399860 3/4 3/4 51 107 32 30 - 34 0.543
399861 1 1 59 114 38 30 - 34 0.661
399862 1 1/4 1 1/4 68 121 45 30 - 36 0.884
399863 1 1/2 1 1/2 75 133 48 32 - 38 1.140
399864 2 2 96 156 62 36 - 42 2.000


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399859GF PF Tee 90° Threaded Branch Steel Galv. FPM 1/2" £44.13 5% £41.92
399860GF PF Tee 90° Threaded Branch Steel Galv. FPM 3/4" £48.24 5% £45.83
399861GF PF Tee 90° Threaded Branch Steel Galv. FPM 1" £54.14 5% £51.43
399862GF PF Tee 90° Threaded Branch Steel Galv. FPM 1 1/4" £73.89 5% £70.20
399863GF PF Tee 90° Threaded Branch Steel Galv. FPM 1 1/2" £88.32 5% £83.90
399864GF PF Tee 90° Threaded Branch Steel Galv. FPM 2" £117.58 5% £111.70
