M Adaptor Steel x Steel NBR

Useful Information

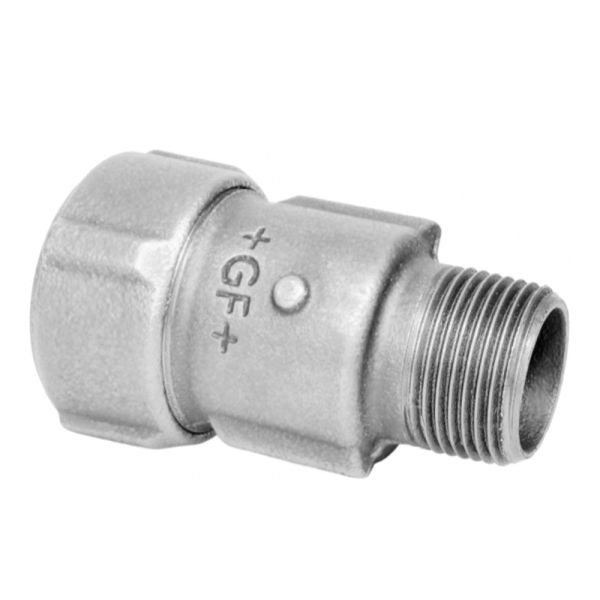

These PRIMOFIT compression male adaptors have NBR gaskets and are for connection to ISO 65 Steel pipe and R/EN 10226-1 threaded pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Gas
up to 16 bar - Water
Operating Temperature -20°C to +80°C

GF-primofit-male-adaptor-diagram

Product Code Dim. St (inch) Dim. R (inch) D (mm) L (mm) x (mm) Weight (kg)
399695 1/2 1/2 45 74 30 - 34 0.234
399696 3/4 3/4 51 81 30 - 34 0.308
399697 1 1 59 90 30 - 34 0.421
399698 1 1/4 1 1/4 68 94 30 - 36 0.554
399699 1 1/2 1 1/2 75 94 32 - 38 0.648
399700 2 2 96 106 36 - 42 1.120
399701 2 1/2 2 1/2 119 173 65 - 75 2.720
399702 3 3 132 186 65 - 75 3.560



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399695GF PF Male Adaptor Steel x Steel Galv. NBR 1/2" £17.84 5% £16.95
399696GF PF Male Adaptor Steel x Steel Galv. NBR 3/4" £19.40 5% £18.43
399697GF PF Male Adaptor Steel x Steel Galv. NBR 1" £21.85 5% £20.76
399698GF PF Male Adaptor Steel x Steel Galv. NBR 1 1/4" £27.60 5% £26.22
399699GF PF Male Adaptor Steel x Steel Galv. NBR 1 1/2" £32.90 5% £31.26
399700GF PF Male Adaptor Steel x Steel Galv. NBR 2" £43.65 5% £41.47
399701GF PF Male Adaptor Steel x Steel Galv. NBR 2 1/2" £186.67 5% £177.34
399702GF PF Male Adaptor Steel x Steel Galv. NBR 3" £206.21 5% £195.90
