M Adaptor Steel x Steel FPM
Useful Information

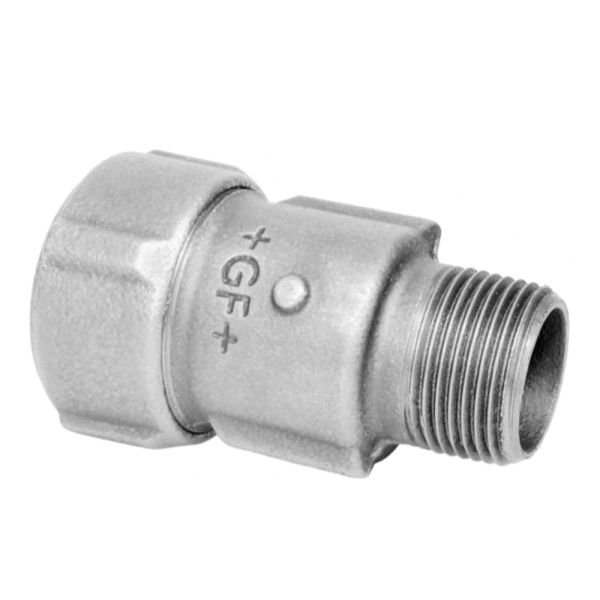

These PRIMOFIT compression male adaptors have FPM gaskets and are for connection to ISO 65 Steel pipe and R/EN 10226-1 threaded pipe.
Â
| Material | Malleable Iron |
| Type | Galvanised |
| Pressure Rating | up to 10 bar - Fuel up to 16 bar - Compressed Air |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. St (inch) | Dim. R (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399731 | 1/2 | 1/2 | 45 | 74 | 30 - 34 | 0.234 |
| 399732 | 3/4 | 3/4 | 51 | 81 | 30 - 34 | 0.308 |
| 399733 | 1 | 1 | 59 | 90 | 30 - 34 | 0.421 |
| 399734 | 1 1/4 | 1 1/4 | 68 | 94 | 30 - 36 | 0.554 |
| 399735 | 1 1/2 | 1 1/2 | 75 | 94 | 32 - 38 | 0.648 |
| 399736 | 2 | 2 | 96 | 106 | 36 - 42 | 1.120 |
| 399737 | 2 1/2 | 2 1/2 | 119 | 173 | 65 - 75 | 2.720 |
| 399738 | 3 | 3 | 132 | 186 | 65 - 75 | 3.560 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
