F Adaptor Steel x PE NBR

Useful Information

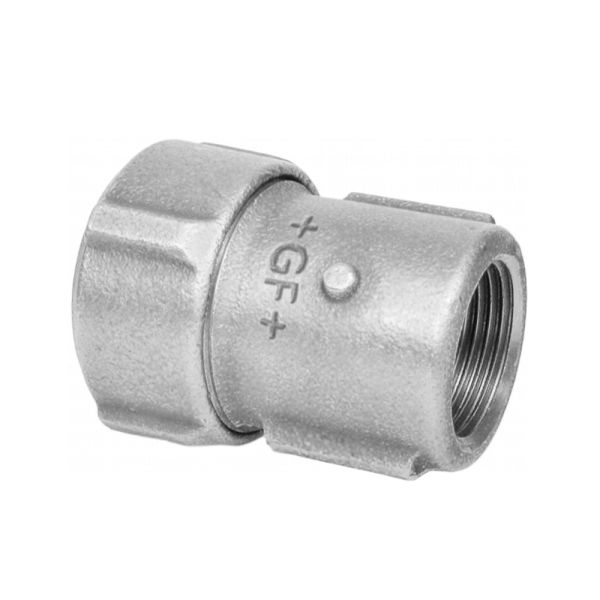

These PRIMOFIT compression female adaptors have NBR gaskets and are for connection to PE SDR 11/S 5 and Rp/EN 10226-1 threaded pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 8 bar - Gas
up to 16 bar - Water
Operating Temperature -20°C to +80°C

GF-primofit-female-adaptor-diagram

Product Code Dim. PE (mm) Dim. Rp (inch) D (mm) L (mm) x (mm) Weight (kg)
399761 20 x 2.0 1/2 45 58 31 - 33 0.227
399762 25 x 2.3 3/4 51 62 31 - 33 0.300
399763 32 x 3.0 1 59 68 31 - 33 0.400
399764 40 x 3.7 1 1/4 68 70 32 - 38 0.560
399765 50 x 4.6 1 1/2 75 75 35 - 43 0.700
399766 63 x 5.8 2 96 83 36 - 47 1.308



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399761GF PF Female Adaptor Steel x PE Galv. NBR 1/2" x 20mm £24.01 5% £22.81
399762GF PF Female Adaptor Steel x PE Galv. NBR 3/4" x 25mm £26.25 5% £24.94
399763GF PF Female Adaptor Steel x PE Galv. NBR 1" x 32mm £29.34 5% £27.87
399764GF PF Female Adaptor Steel x PE Galv. NBR 1 1/4" x 40mm £37.18 5% £35.32
399765GF PF Female Adaptor Steel x PE Galv. NBR 1 1/2" x 50mm £44.36 5% £42.14
399766GF PF Female Adaptor Steel x PE Galv. NBR 2" x 63mm £59.11 5% £56.15
