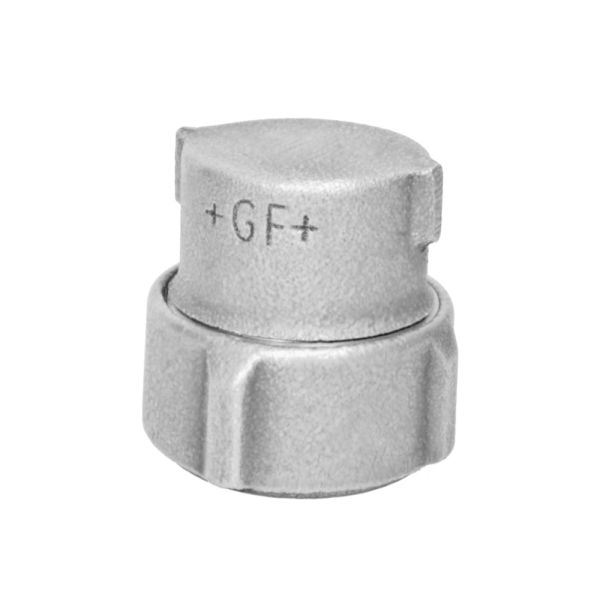

End Cap Steel FPM

Useful Information

These PRIMOFIT compression elbows have FPM gaskets and are for connection to ISO 65 steel pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Fuel
up to 16 bar - Compressed Air
Operating Temperature -20°C to +80°C

GF-primofit-end-cap-diagram

Product Code Dim. (inch) D (mm) L (mm) x (mm) Weight (kg)
399935 1/2 45 46 31 - 33 0.207
399936 3/4 51 48 31 - 33 0.240
399937 1 59 52 31 - 33 0.347
399938 1 1/4 68 53 32 - 38 0.450
399939 1 1/2 75 55 32 - 38 0.520
399940 2 96 60 39 - 47 0.940


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399935GF PF End Cap Steel Galv. FPM 1/2" £23.93 5% £22.73
399936GF PF End Cap Steel Galv. FPM 3/4" £26.16 5% £24.85
399937GF PF End Cap Steel Galv. FPM 1" £29.32 5% £27.85
399938GF PF End Cap Steel Galv. FPM 1 1/4" £36.97 5% £35.12
399939GF PF End Cap Steel Galv. FPM 1 1/2" £44.13 5% £41.92
399940GF PF End Cap Steel Galv. FPM 2" £58.45 5% £55.53
