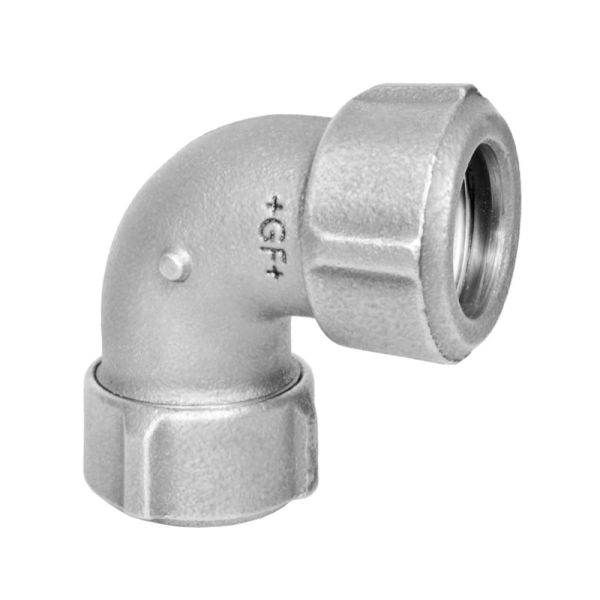

Elbow 90° Steel FPM

Useful Information

These PRIMOFIT compression elbows have FPM gaskets and are for connection to ISO 65 Steel pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Fuel
up to 16 bar - Compressed Air
Operating Temperature -20°C to +80°C

GF-primofit-elbow-diagram

Product Code Dim. (inch) D (mm) L (mm) x (mm) Weight (kg)
399900 1/2 45 58 30 - 34 0.397
399901 3/4 51 60 30 - 34 0.494
399902 1 59 60 30 - 34 0.674
399903 1 1/4 68 60 30 - 36 0.820
399904 1 1/2 75 76 32 - 38 1.000
399905 2 96 88 36 - 42 1.860


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399900GF PF Elbow 90° Steel Galv. FPM 1/2" £45.98 5% £43.68
399901GF PF Elbow 90° Steel Galv. FPM 3/4" £50.24 5% £47.73
399902GF PF Elbow 90° Steel Galv. FPM 1" £56.33 5% £53.51
399903GF PF Elbow 90° Steel Galv. FPM 1 1/4" £71.14 5% £67.58
399904GF PF Elbow 90° Steel Galv. FPM 1 1/2" £84.97 5% £80.72
399905GF PF Elbow 90° Steel Galv. FPM 2" £113.08 5% £107.43
