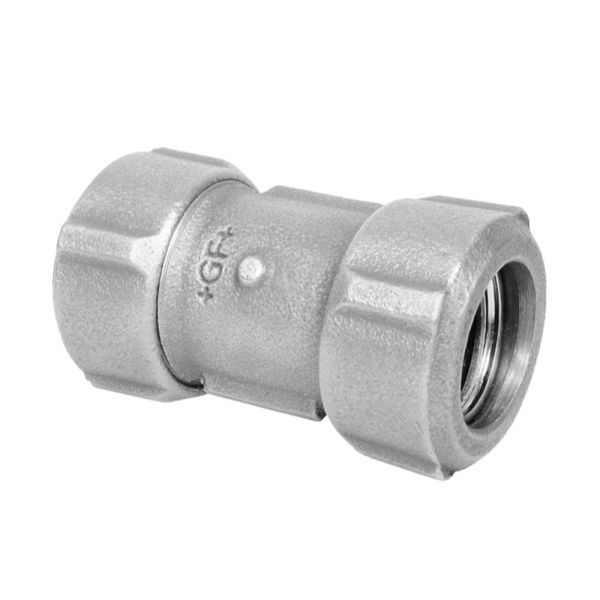

Coupling Steel x Steel FPM

Useful Information

These PRIMOFIT compression couplings have FPM gaskets and are for connection to ISO 65 steel pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Fuel
up to 16 bar - Compressed Air
Operating Temperature -20°C to +80°C

GF-primofit-coupling-diagram

Product Code Dim. (inch) D (mm) L (mm) x (mm) Weight (kg)
399655 1/2 45 85 30 - 34 0.346
399656 3/4 51 90 30 - 34 0.436
399657 1 59 96 30 - 34 0.588
399658 1 1/4 68 96 30 - 36 0.688
399659 1 1/2 75 100 32 - 38 0.840
399660 2 96 112 36 - 42 1.603
399661 2 1/2 119 185 65 - 75 3.650
399662 3 132 191 65 - 75 4.480



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399655GF PF Coupling Steel x Steel Galv. FPM 1/2" £36.85 5% £35.01
399656GF PF Coupling Steel x Steel Galv. FPM 3/4" £40.16 5% £38.15
399657GF PF Coupling Steel x Steel Galv. FPM 1" £45.08 5% £42.83
399658GF PF Coupling Steel x Steel Galv. FPM 1 1/4" £56.84 5% £54.00
399659GF PF Coupling Steel x Steel Galv. FPM 1 1/2" £67.95 5% £64.55
399660GF PF Coupling Steel x Steel Galv. FPM 2" £90.45 5% £85.93
399661GF PF Coupling Steel x Steel Galv. FPM 2 1/2" £360.30 5% £342.29
399662GF PF Coupling Steel x Steel Galv. FPM 3" £426.56 5% £405.23
