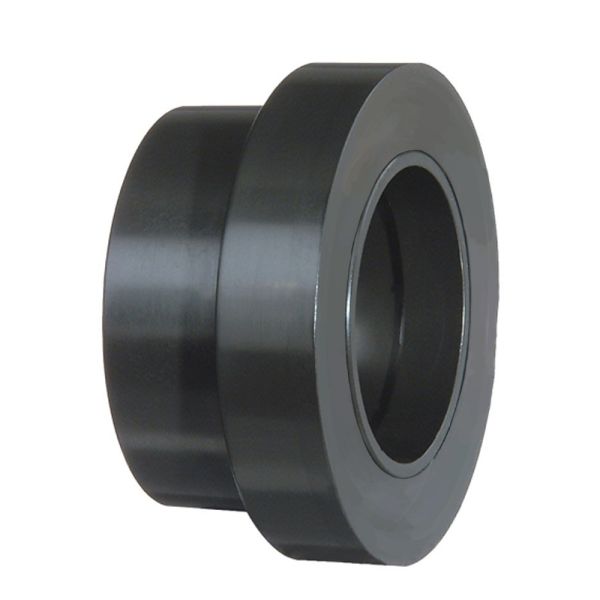

Georg Fischer ecoFIT SF Stub Flange
Useful Information
These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE100 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
The flanges are manufactured from polypropylene with steel core and have an EPDM profile flange gasket.
| Pressure Rating | 10 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 20mm - 110mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | D (mm) | d1 (mm) | D1 (mm) | z (mm) | L (mm) | L1 (mm) | Weight (kg) |
| 402039 | 20 | 27 | 16 | 45 | 5 | 19 | 7 | 0.013 |
| 402040 | 25 | 33 | 21 | 58 | 5 | 21 | 9 | 0.022 |
| 402041 | 32 | 41 | 28 | 68 | 5 | 23 | 10 | 0.035 |
| 402042 | 40 | 50 | 36 | 78 | 5 | 25 | 11 | 0.052 |
| 402043 | 50 | 61 | 45 | 88 | 5 | 28 | 12 | 0.061 |
| 402044 | 63 | 76 | 57 | 102 | 5 | 32 | 14 | 0.095 |
| 402045 | 75 | 90 | 69 | 122 | 5 | 36 | 16 | 0.163 |
| 402046 | 90 | 108 | 84 | 138 | 7 | 42 | 17 | 0.203 |
| 402047 | 110 | 131 | 100 | 158 | 7 | 48 | 18 | 0.293 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
