Union Plain x Thread M

Useful Information

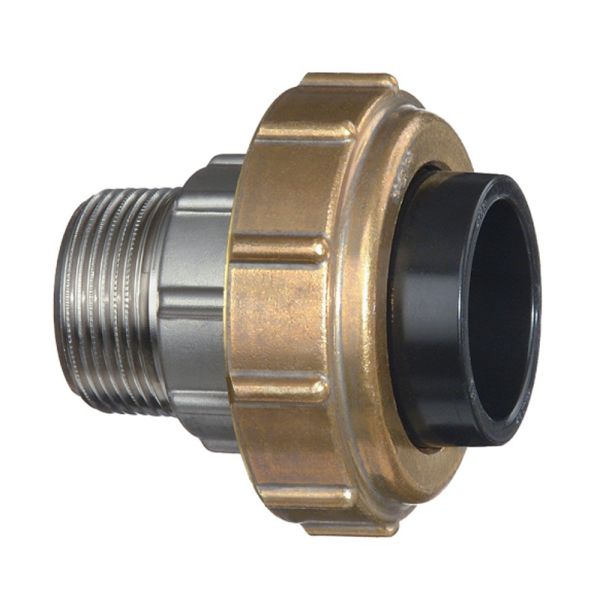

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The union end is a metric fusion socket and manufactured from PE80 whilst the nut is manufactured from brass and the bush is nickel plated male tapered thread. The complete union contains a nitrile rubber gasket.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20mm x 1/2" - 63mm x 2"
Colour Black - RAL 9005

GF-socket-fusion-union-plain-x-m-thread-diagram

Product Code d (mm) d1 (mm) R (inch) L (mm) L1 (mm) z (mm) G (inch) Weight (kg)
401965 20 46 1/2 62 40 6 1 1/4 0.260
401966 25 52 3/4 65 41 6 1 1/2 0.324
401967 32 64 1 71 45 6 2 0.470
401968 40 79 1 1/4 78 48 8 2 1/4 0.754
401969 50 85 1 1/2 85 43 8 2 3/4 0.781
401970 63 104 2 91 54 8 3 1/2 1.166




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401965GF ecoFIT SF PE Union x Thread M NBR 10 Bar 20mm x 1/2" £57.31 20% £45.85
401966GF ecoFIT SF PE Union x Thread M NBR 10 Bar 25mm x 3/4" £62.60 20% £50.08
401967GF ecoFIT SF PE Union x Thread M NBR 10 Bar 32mm x 1" £71.21 20% £56.97
401968GF ecoFIT SF PE Union x Thread M NBR 10 Bar 40mm x 1 1/4" £118.47 20% £94.78
401969GF ecoFIT SF PE Union x Thread M NBR 10 Bar 50mm x 1 1/2" £125.75 20% £100.60
401970GF ecoFIT SF PE Union x Thread M NBR 10 Bar 63mm x 2" £151.68 20% £121.34
