Union Plain x Thread F

Useful Information

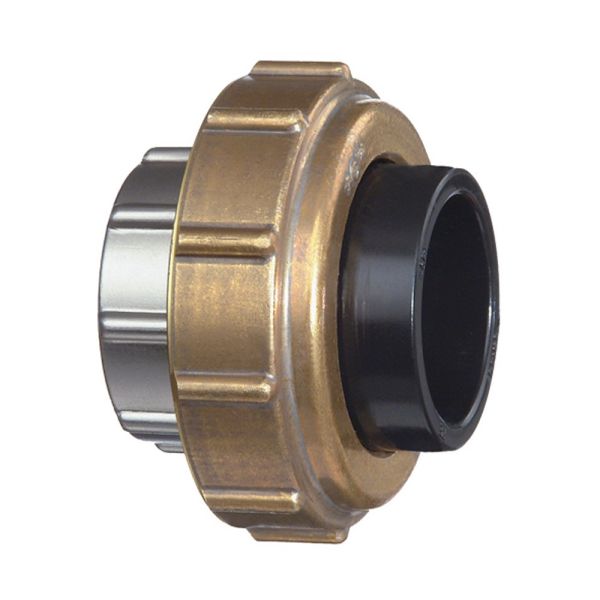

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The union end is a metric fusion socket and manufactured from PE80 whilst the nut and bush are manufactured from brass and the complete union contains a nitrile rubber gasket.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20mm x 1/2" - 63mm x 2"
Colour Black - RAL 9005

GF-socket-fusion-union-plain-x-f-thread-diagram

Product Code d (mm) d1 (mm) Rp (inch) L (mm) z1 (mm) z2 (mm) G (inch) Weight (kg)
401959 20 46 1/2 46 6 10 1 1/4 0.209
401960 25 52 3/4 48 6 9 1 1/2 0.269
401961 32 64 1 51 6 8 2 0.376
401962 40 79 1 1/4 56 8 7 2 1/4 0.596
401963 50 85 1 1/2 59 8 7 2 3/4 0.666
401964 63 104 2 65 8 5 3 1/2 0.960




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401959GF ecoFIT SF PE Union x Thread F NBR 10 Bar 20mm x 1/2" £52.46 20% £41.97
401960GF ecoFIT SF PE Union x Thread F NBR 10 Bar 25mm x 3/4" £58.14 20% £46.51
401961GF ecoFIT SF PE Union x Thread F NBR 10 Bar 32mm x 1" £67.02 20% £53.62
401962GF ecoFIT SF PE Union x Thread F NBR 10 Bar 40mm x 1 1/4" £111.80 20% £89.44
401963GF ecoFIT SF PE Union x Thread F NBR 10 Bar 50mm x 1 1/2" £120.88 20% £96.70
401964GF ecoFIT SF PE Union x Thread F NBR 10 Bar 63mm x 2" £144.08 20% £115.26
