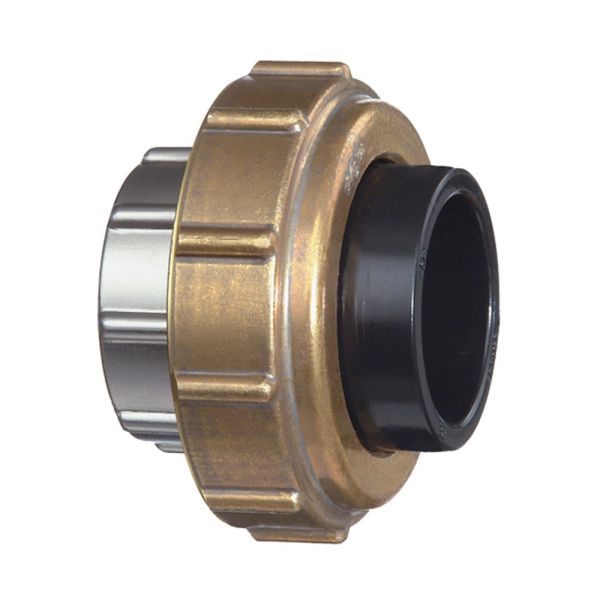

Union

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The union end is a metric fusion socket and manufactured from PE80 whilst the nut and bush are manufactured from brass and the complete union contains a nitrile rubber gasket.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20 - 63mm
Colour Black - RAL 9005

GF-socket-fusion-union-diagram

Product Code d (mm) d1 (mm) d2 (mm) L (mm) z1 (mm) z2 (mm) G (inch) Weight (kg)
401953 20 20 46 46 6 3 1 1/4 0.163
401954 25 25 52 49 6 3 1 1/2 0.214
401955 32 32 64 51 6 3 2 0.294
401956 40 40 79 56 8 3 2 1/4 0.473
401957 50 50 85 61 8 3 2 3/4 0.491
401958 63 63 104 69 8 3 3 1/2 0.730




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401953GF ecoFIT SF PE Union NBR 10 Bar 20mm £55.08 20% £44.06
401954GF ecoFIT SF PE Union NBR 10 Bar 25mm £60.77 20% £48.62
401955GF ecoFIT SF PE Union NBR 10 Bar 32mm £68.76 20% £55.01
401956GF ecoFIT SF PE Union NBR 10 Bar 40mm £106.00 20% £84.80
401957GF ecoFIT SF PE Union NBR 10 Bar 50mm £117.32 20% £93.86
401958GF ecoFIT SF PE Union NBR 10 Bar 63mm £140.28 20% £112.22
