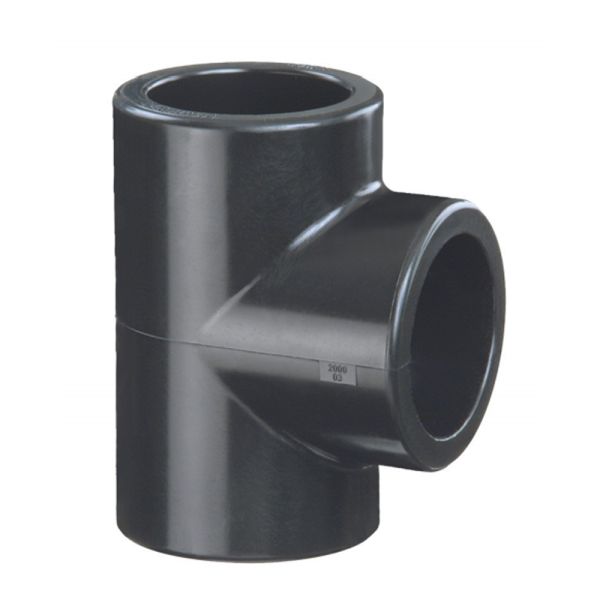

Tee 90°

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20 - 110mm
Colour Black - RAL 9005

GF-tee-diagram

Product Code d (mm) z (mm) D (mm) L (mm) Weight (kg)
401944 20 14 31 28 0.028
401945 25 16 36 32 0.041
401946 32 20 44 38 0.060
401947 40 24 54 44 0.100
401948 50 28 66 51 0.166
401949 63 35 82 62 0.298
401950 75 45 93 76 0.409
401951 90 53 114 88 0.749
401952 110 65 134 106 1.112




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.




Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401944GF ecoFIT SF PE Tee 90° 10 Bar 20mm £13.76 20% £11.01
401945GF ecoFIT SF PE Tee 90° 10 Bar 25mm £13.76 20% £11.01
401946GF ecoFIT SF PE Tee 90° 10 Bar 32mm £15.46 20% £12.37
401947GF ecoFIT SF PE Tee 90° 10 Bar 40mm £19.73 20% £15.78
401948GF ecoFIT SF PE Tee 90° 10 Bar 50mm £33.06 20% £26.45
401949GF ecoFIT SF PE Tee 90° 10 Bar 63mm £45.19 20% £36.15
401950GF ecoFIT SF PE Tee 90° 10 Bar 75mm £104.54 20% £83.63
401951GF ecoFIT SF PE Tee 90° 10 Bar 90mm £152.38 20% £121.90
401952GF ecoFIT SF PE Tee 90° 10 Bar 110mm £203.79 20% £163.03
