Socket

Useful Information

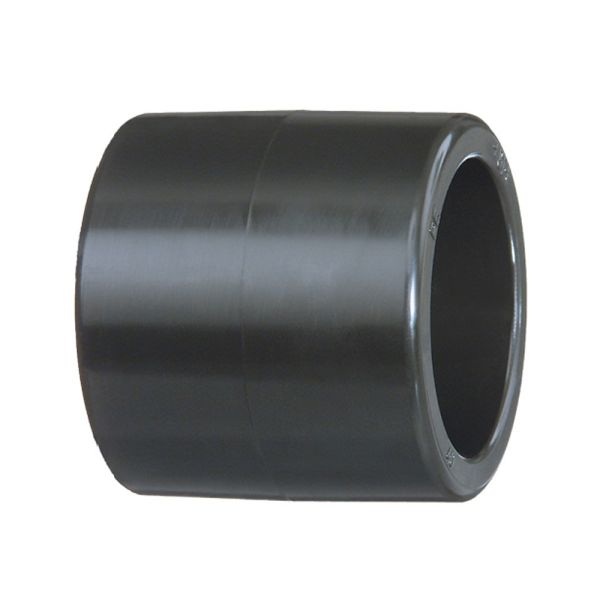

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20mm - 110mm
Colour Black - RAL 9005

GF-sockets-diagram

Product Code d (mm) z (mm) D (mm) L (mm) Weight (kg)
401988 20 7 31 35 0.014
401989 25 7 36 39 0.018
401990 32 7 44 43 0.027
401991 40 8 54 48 0.043
401992 50 8 66 54 0.074
401993 63 8 82 62 0.124
401994 75 8 93 70 0.152
401995 90 11 112 81 0.234
401996 110 14 134 96 0.419



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.




Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401988GF ecoFIT SF PE Socket 10 Bar 20mm £7.52 20% £6.02
401989GF ecoFIT SF PE Socket 10 Bar 25mm £7.72 20% £6.18
401990GF ecoFIT SF PE Socket 10 Bar 32mm £10.35 20% £8.28
401991GF ecoFIT SF PE Socket 10 Bar 40mm £12.63 20% £10.10
401992GF ecoFIT SF PE Socket 10 Bar 50mm £19.73 20% £15.78
401993GF ecoFIT SF PE Socket 10 Bar 63mm £26.26 20% £21.01
401994GF ecoFIT SF PE Socket 10 Bar 75mm £42.96 20% £34.37
401995GF ecoFIT SF PE Socket 10 Bar 90mm £52.66 20% £42.13
401996GF ecoFIT SF PE Socket 10 Bar 110mm £90.62 20% £72.50
