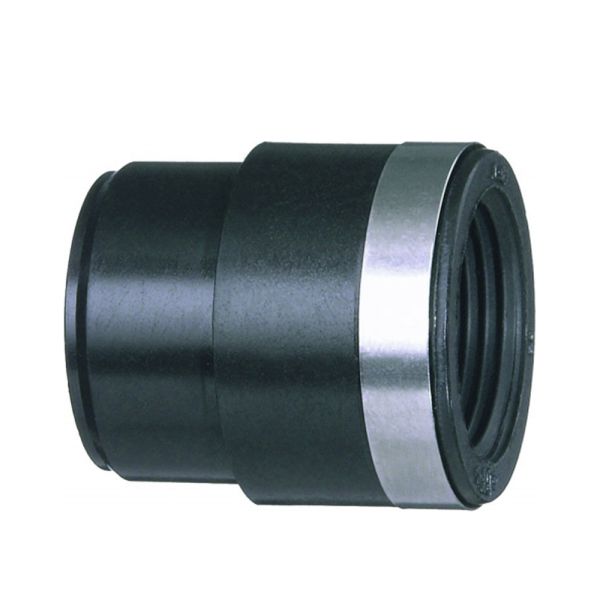

Reducing Bush Plain x Thread F

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20mm x 3/8" - 50mm x 1 1/4"
Colour Black - RAL 9005

GF-plain-x-thread-spigot-reducing-bush-diagram

Product Code d (mm) RP (inch) z (mm) L (mm) Weight (kg)
402019 20 3/8 7 33 0.012
402020 25 1/2 6 37 0.015
402021 32 3/4 8 43 0.028
402022 40 1 9 49 0.046
402023 50 1 1/4 10 55 0.071




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402019GF ecoFIT SF PE Reducing Bush x Thread F 10 Bar 20mm x 3/8" £15.26 20% £12.21
402020GF ecoFIT SF PE Reducing Bush x Thread F 10 Bar 25mm x 1/2" £16.92 20% £13.54
402021GF ecoFIT SF PE Reducing Bush x Thread F 10 Bar 32mm x 3/4" £19.20 20% £15.36
402022GF ecoFIT SF PE Reducing Bush x Thread F 10 Bar 40mm x 1" £24.83 20% £19.86
402023GF ecoFIT SF PE Reducing Bush x Thread F 10 Bar 50mm x 1 1/4" £33.29 20% £26.63
