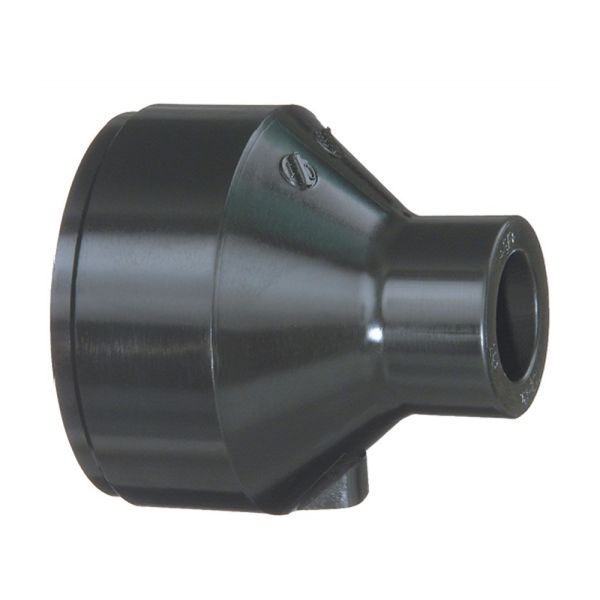

Reducing Bush

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 25 x 20mm - 110 x 90mm
Colour Black - RAL 9005

GF-reducing-bush-diagram

Product Code d (mm) d1 (mm) z (mm) L (mm) Weight (kg)
402003 25 20 23 39 0.013
402004 32 25 27 43 0.021
402005 40 20 34 48 0.023
402006 40 25 32 48 0.027
402007 40 32 30 48 0.032
402008 50 32 36 54 0.042
402009 50 40 34 54 0.049
402010 63 20 50 64 0.057
402011 63 25 48 64 0.060
402012 63 32 46 64 0.065
402013 63 40 44 64 0.070
402014 63 50 41 64 0.086
402015 75 63 35 62 0.103
402016 90 63 62 88 0.180
402017 90 75 39 70 0.144
402018 110 90 45 81 0.254



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.




Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402003GF ecoFIT SF PE Reducing Bush 10 Bar 25mm x 20mm £10.02 20% £8.02
402004GF ecoFIT SF PE Reducing Bush 10 Bar 32mm x 25mm £11.73 20% £9.38
402005GF ecoFIT SF PE Reducing Bush 10 Bar 40mm x 20mm £17.53 20% £14.02
402006GF ecoFIT SF PE Reducing Bush 10 Bar 40mm x 25mm £17.53 20% £14.02
402007GF ecoFIT SF PE Reducing Bush 10 Bar 40mm x 32mm £17.53 20% £14.02
402008GF ecoFIT SF PE Reducing Bush 10 Bar 50mm x 32mm £24.40 20% £19.52
402009GF ecoFIT SF PE Reducing Bush 10 Bar 50mm x 40mm £24.40 20% £19.52
402010GF ecoFIT SF PE Reducing Bush 10 Bar 63mm x 20mm £33.06 20% £26.45
402011GF ecoFIT SF PE Reducing Bush 10 Bar 63mm x 25mm £28.25 20% £22.60
402012GF ecoFIT SF PE Reducing Bush 10 Bar 63mm x 32mm £28.25 20% £22.60
402013GF ecoFIT SF PE Reducing Bush 10 Bar 63mm x 40mm £28.25 20% £22.60
402014GF ecoFIT SF PE Reducing Bush 10 Bar 63mm x 50mm £28.25 20% £22.60
402015GF ecoFIT SF PE Reducing Bush 10 Bar 75mm x 63mm £33.06 20% £26.45
402016GF ecoFIT SF PE Reducing Bush 10 Bar 90mm x 63mm £45.82 20% £36.66
402017GF ecoFIT SF PE Reducing Bush 10 Bar 90mm x 75mm £45.82 20% £36.66
402018GF ecoFIT SF PE Reducing Bush 10 Bar 110mm x 90mm £61.52 20% £49.22
